Hellermann
End Cap u adhesive for 75/36mm
Part number416-17016EAN / GTIN5022660647017HS code3917.32
Tools & Workshop Consumables
Chemicals & Consumables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

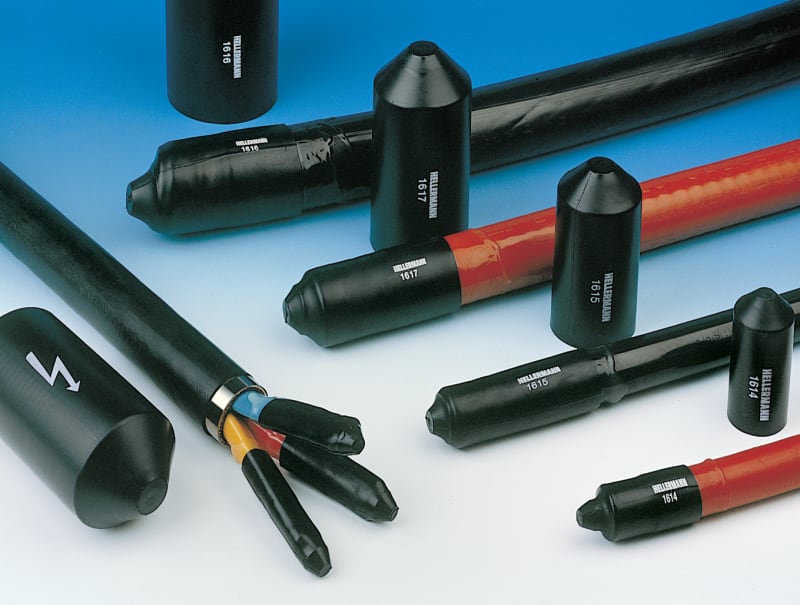

Hellermann 416-17016 End Cap u adhesive for 75/36mm.
Technical Specifications
- Manufacturer part number (MPN)
- 416-17016
- EAN / GTIN
- 5022660647017
- Sales unit
- pcs
- Package quantity
- 60 pcs
- OEM part description
- 1617-1-B8-PO-X-BK
- Type
- 1617-1-B8
- Product family
- Helashrink 1600 Series, low voltage
- Material
- Polyolefin, cross-linked (PO-X)
- Colour
- Black (BK)
- Bundle diameter
- 32.0-61.0 mm
- Supplied diameter (min.)
- 75.0 mm
- Recovered diameter (max.)
- 32.0 mm
- Operating temperature
- -50 °C to +80 °C
- Flammability rating
- ASTM D635
- RoHS compliant
- Yes
- Packed in
- bag
- Inner pack quantity
- 1
- Inner pack type
- pcs.
- Country of origin
- GB
- Customs tariff number
- 39173290
- ETIM 9.0 class
- EC000218
- UNSPSC code
- 39121721
- Max Voltage
- 600 V
- Shrink Ratio
- up to 3:1
- ⌀H max. b
- 32.0 mm
- ⌀H min. a
- 75.0 mm
- Flexibility
- semi rigid
- For Object Outside Diameter
- 40.6-66.4 mm
- HW ± 20 %
- 4.0 mm
- P ± 10 %
- 140.0 mm
- W ± 20 %
- 4.0 mm
- Adhesive
- Hot melt adhesive
- Dielectric Strength
- 15 kV/mm
- Min. Shrink Temperature - °C
- +135 °C
- Shelf Life
- 5 years
- Tensile Strength
- 12 MPa
- Model
- Medium-walled
- Halogen free
- No
- Wall thickness after shrinking
- 4 mm
- Total length after shrink
- 140 mm
- Inner diameter before heat-shrink
- 75 mm
- Inner diameter after heat-shrink
- 32 mm
- Nominal cross section
- 800–2920 mm²
- Transparent
- No
- Printable
- No
- With inner glue
- No
- Shrink rate
- 3:1
- UL approval
- No
Standards & Compliance
- HS Code
- 3917.32
Cross References
- EAN 5022660647017
- SAP 1200000239
- Code 8372781
Product Documentation
Document preview: End Cap u adhesive for 75/36mm (416-17016) — Specification sheet
More from Hellermann
Hellermann
Hensel Membrane Gland M 25ESM 2
ESM 25
Hellermann
Junction BOX KF 5000 C SV EMPTY
Hellermann
Spiral Wrap SBPE9 NAT 30 m
161-41200
Hellermann
Hensel Membrane Gland M 40ESM 4
ESM 40
Hellermann

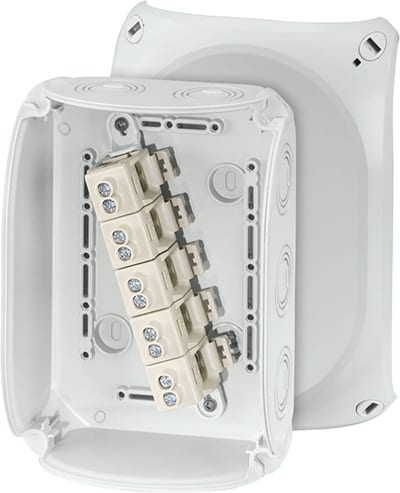

Junction BOX KF 1616 G 16 mm²
Hellermann

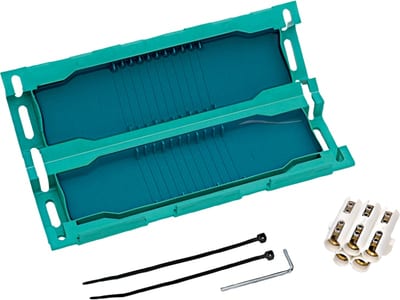

Hellermann Relifix V525 Gel Cable Joint 5x16-25 mm2
435-00656
Hellermann

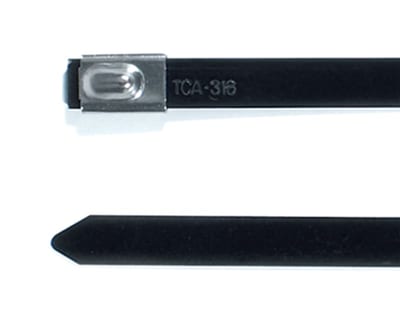

Cable Tie Steel MBT33XH838 x 12.3 mm
111-95339
Hellermann

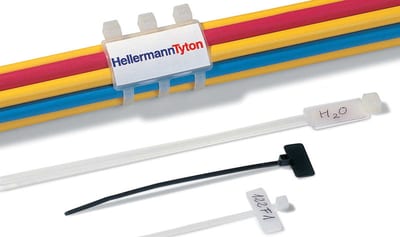

Cable tie with label plate Nat IT50R
