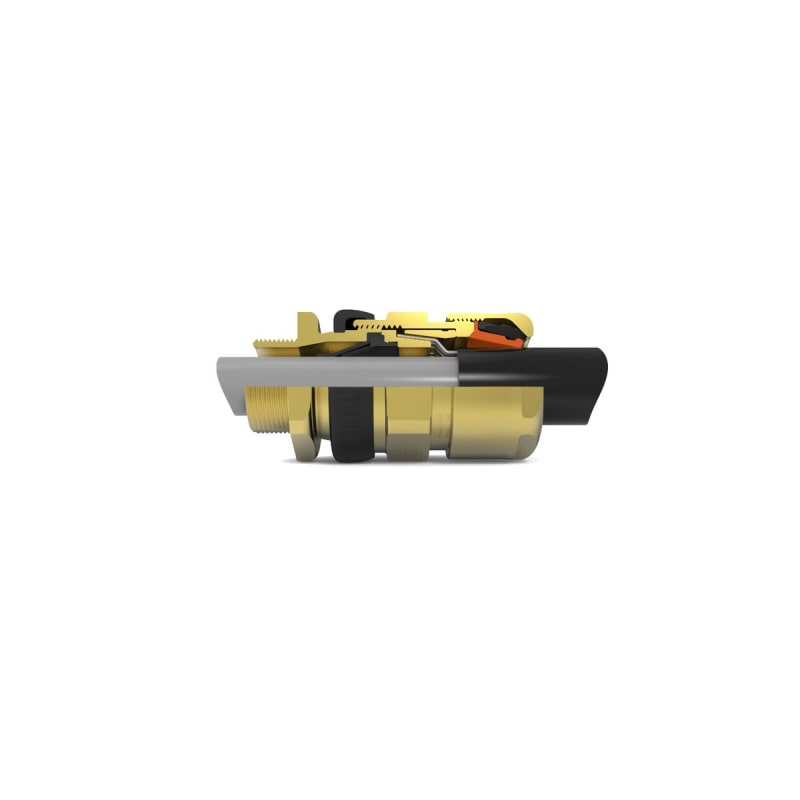

Hawke 501/453/UNIV Ex d / Ex e barrier cable gland, size F, M75, brass
Pricing
Request a quote
We reply within 24 hours
Product Description
Hawke 501/453/UNIV Ex d / Ex e barrier cable gland, size F, M75, brass (501/453/U-FM75BR). Manufacturer designation: Exde (50,5-68,2mm / 57,0-78,0mm). Ex marking Ex II 2GD Ex db eb IIC Gb; Ex nR IIC Gc; Ex tb IIIC Db; Class I, Zone I, AEx eb IIC Gb; Zone 21, AEx tb IIIC Db; Class I Div 2 ABCD; Class II Div 2 EFG; Class III. Ingress protection IP66, IP67 IP68 (30 metres for 7 days, special conditions may apply) and IP69 to IEC/EN 60529; NEMA 4X; Deluge Protection to DTS01. Operating temperature -60°C to +80 °C.
Technical Specifications
- Manufacturer part number (MPN)
- 501/453/U-FM75BR
- EAN / GTIN
- 7070923002132
- Sales unit
- pcs
- Product type
- Ex d / Ex e barrier cable gland
- Series
- Hawke 501/453/UNIV
- Gland size
- F
- Entry thread
- M75
- Cable inner sheath range
- 50.5–68.2 mm
- Cable outer sheath range
- 57.0–78.0 mm
- Material
- Brass
- Hazardous area application
- Hazardous Areas Zone 1, Zone 21, Zone 2, Zone 22
- Ingress protection
- IP66, IP67 IP68 (30 metres for 7 days, special conditions may apply) and IP69 to IEC/EN 60529; NEMA 4X; Deluge Protection to DTS01
- Operating temperature
- -60°C to +80 °C
- Standards
- IEC/EN 62444 (Anchorage Type D); IEC/EN 60079-0, 1, 7, 15, 31; CSA 60079-0, 1, 7, 31; CSA C22.2 No. 0-10, CSA C22.2 No. 174-18; UL 60079-0, 7, 31; UL2225; UL1203; UL514B
- Product family
- Cable Glands for Group II Hazardous Areas
- Ex marking
- Ex II 2GD Ex db eb IIC Gb; Ex nR IIC Gc; Ex tb IIIC Db; Class I, Zone I, AEx eb IIC Gb; Zone 21, AEx tb IIIC Db; Class I Div 2 ABCD; Class II Div 2 EFG; Class III
- Impact rating
- IK10 to IEC 62262
- ATEX certificate
- CML 18ATEX1268X / CML 19ATEX4507 (Ex nR)
- CCC certificate
- 2020312313000318
- cCSAus certificate
- 1015065
- DNV certificate
- TAE0000BS
- EAC certificate
- KZ 7100841.01.01.03125
- EQM certificate
- 20-11-27224/Q20-11-000979/NB0007
- IECEx certificate
- CML 18.0131X / CML 21.0012X (Ex nR)
- Inmetro certificate
- IEx 14.0272X
- KCs certificate
- 17-KA4BO-0631X to 0633X
- PESO certificate
- P450038
- SONCAP certificate
- LCOGB049552-0500
- UKEx certificate
- CML 21UKEX1132X / CML 21UKEX4133X (Ex nR)
- Thread type
- Metric
- Nominal thread size metric/PG
- 75
- Pitch thread
- 1.5 mm
- Thread length
- 15 mm
- Wrench width
- 95 mm
- Hexagon angular dimension
- 104 mm
- Material quality
- Brass
- Surface protection
- Untreated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Shock resistant
- Yes
- Bend radius protection/trumpet flare
- Yes
- With locknut
- No
- Snapping in opening
- Yes
- Flat cable coupling
- No
- With strain relief
- No
- Type of sealing
- Sealing ring
- Separable screw gland
- No
- Explosion-tested version
- Yes
- For Ex-zone gas
- 1, 2
- For Ex-zone dust
- 21, 22
- For armoured cable
- Yes
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 7419.80
Cross References
- EAN 7070923002132
- SAP 1200820276
- Code 84003506
Product Documentation
More from Hawke
Hawke
Hawke A2E Ex e cable gland, size F, M75, nickel-plated brass, cable Ø52.0–67.5 mm
A2E-FM75NP
Hawke
Hawke 475 Ex d tamperproof stopping plug, M63, brass
475-M63BR
Hawke
Hawke 487 Ex d / Ex e dome head stopping plug, M50, brass
487-M50BR
Hawke
Hawke Earth tag, size G, M80, brass
ET-GM80BR
Hawke
Hawke A2E Ex e cable gland, size OS, M16, brass, cable Ø2.5–7.5 mm
A2E-OS16BR
Hawke
Hawke 501/453/UNIV Ex d / Ex e barrier cable gland, size C, M32, 316 stainless steel
501/453/U-CM32SS
Hawke
Hawke 390 Ex e hex head stopping plug, M50, nickel-plated brass
390-M50NP
Hawke
Hawke GMC Gland mounted clamp, terminal size 5, fits C
GMC-5
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
