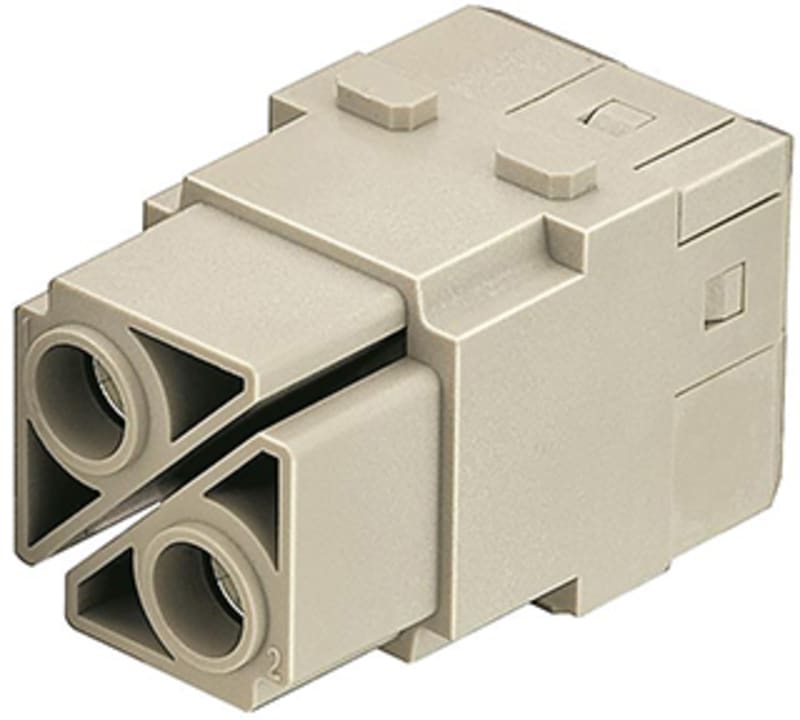

Han 100A axial module, female 10-25 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09140022753 Manufacturer description: Han® 100 A module; Double module; Axial screw termination; Female; Contacts: 2; Conductor cross-section: 10. 25 mm²; Rated current: 100 A; Polycarbonate (PC); RAL 7032 (pebble grey); Copper alloy; Silver plated. Han-Modular® 100Amp plinth module. For multi-strand cable 10-25mm2.
Technical Specifications
- Manufacturer part number (MPN)
- 09140022753
- EAN / GTIN
- 5713140019805
- HS code
- 8544.42
- Sales unit
- pcs
- Category
- Modules
- Type of module
- Han® 100 A module
- Size of the module
- Double module
- Series
- Han-Modular®
- Termination method
- Axial screw termination
- Gender
- Female
- Number of contacts
- 2
- Conductor cross-section (mm²)
- 10 ... 25 mm²
- Wire outer diameter
- ≤11.4 mm
- Rated current
- 100 A
- Rated voltage
- 1000 V
- Rated impulse voltage
- 8 kV
- Pollution degree
- 3
- Rated voltage acc. to UL
- 600 V
- Insulation resistance
- >10¹⁰ Ω
- Contact resistance
- 0.3 mΩ
- Limiting temperature
- -40 ... +125 °C
- Stripping length
- 12 ... 14 mm
- Tightening torque
- 6 ... 7 Nm
- Mating cycles
- 500
- ECHA SCIP number
- 5dbb3851-b94e-4e88-97a1-571845975242
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead | Nickel
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (insert)
- Polycarbonate (PC)
- Colour (insert)
- RAL 7032 (pebble grey)
- Material (contacts)
- Copper alloy
- Surface (contacts)
- Silver plated
- Material flammability class acc. to UL 94
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076 | UL 2237 PVVA2.E318390 | CSA-C22.2 No. 182.3 PVVA8.E318390
- Approvals
- DNV GL
- Specifications
- IEC 60664-1 | IEC 61984 | IEC 61373 Category 1 Class B
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 70 g
- Country of origin
- Germany
- eCl@ss
- 27440217 Module for industrial connectors (power/signals)
- ETIM
- EC000438
- UNSPSC 24.0
- 39121552
