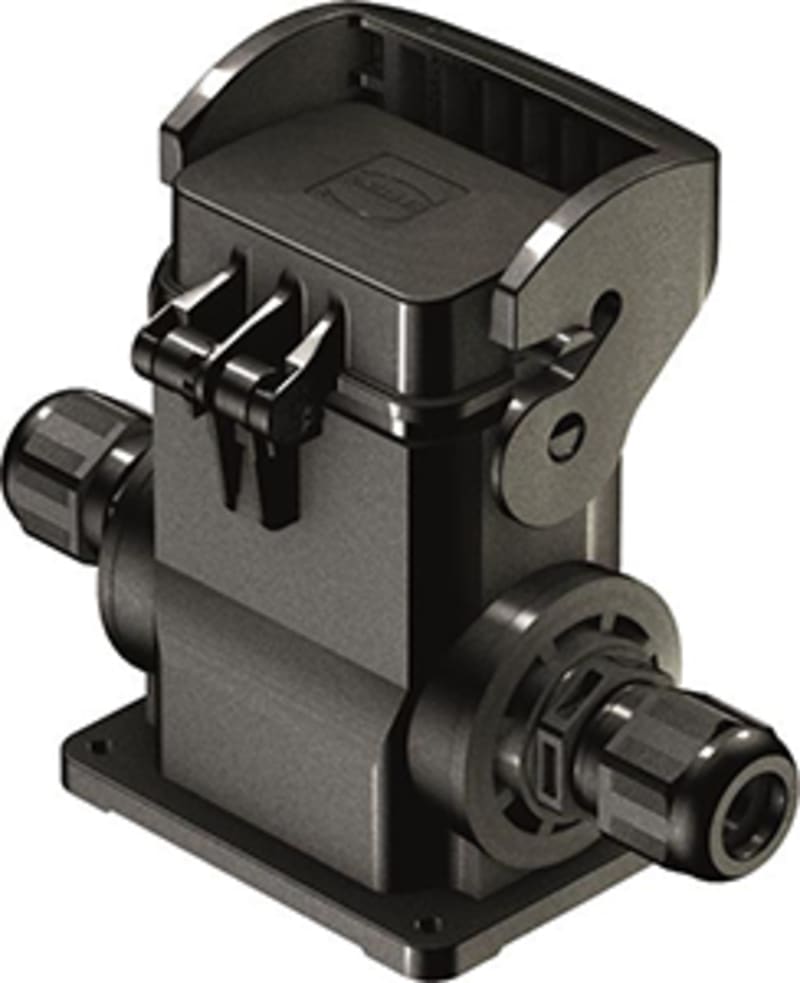

Han-Eco 6B-HSM2-W. SL-M25 w. cov.-gl.
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 19431060296 Manufacturer description: Surface mounted housing; With thermo-plastic cover, with integrated cable gland; Size: 6 B; Single locking lever; Polyamide (PA), Fibre-glass reinforced; Side entry; 2x M25; Material (hood/housing): Polyamide (PA), Fibre-glass reinforced; RAL 9005 (jet black); Material (seal): NBR. Han-Eco 6B Wall-mounted housing, 2xM25, with cover.
Technical Specifications
- Manufacturer part number (MPN)
- 19431060296
- EAN / GTIN
- 5713140177307
- Sales unit
- pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han-Eco® B
- Type of hood/housing
- Surface mounted housing
- Description of hood/housing
- With thermo-plastic cover | With integrated cable gland
- Locking type
- Single locking lever
- Size
- 6 B
- Version
- Side entry
- Number of cable entries
- 2
- Cable entry
- 2x M25
- Field of application
- Hoods/housings for industrial applications
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Number of relockings
- 500
- Degree of protection acc. to IEC 60529
- IP66
- Clamping range
- 9 ... 17 mm
- ECHA SCIP number
- 5dbb3851-b94e-4e88-97a1-571845975242
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-2) | R23 (HL 1-3)
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (hood/housing)
- Polyamide (PA) | Fibre-glass reinforced
- Colour (hood/housing)
- RAL 9005 (jet black)
- Material (seal)
- NBR
- Colour (seal)
- RAL 9005 (jet black)
- Material (locking)
- Polyamide (PA) | Fibre-glass reinforced
- Colour (locking)
- RAL 9005 (jet black)
- Material flammability class acc. to UL 94
- V-0
- Material flammability class acc. to UL 94 (locking levers)
- V-0
- Approvals
- CE
- Specifications
- IEC 61984 | EN 45545-2 Fire protection on railway vehicles
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 263 g
- Country of origin
- Germany
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
- Width
- 65 mm
- UV resistant
- Yes
- Height
- 88 mm
- Depth
- 164 mm
- With hinged lid
- Yes
- Housing colour
- Black
- Type of locking
- Single locking lever
- Number of conduit inlets
- 2
- With cable screw gland
- No
- EMC-version
- No
- Corrosion resistant
- No
- Housing material
- Plastic
- Operating temperature
- -40–125 °C
- With distance piece
- No
- With sealing
- Yes
- Type of housing
- Socket case
- Degree of protection (IP), mounted
- IP66
- Material adaptor plate
- Plastic
- Position cable feed
- Sideways
- Position of the shackle
- Base unit
- Mounting method of the cable gland
- Metric
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 5713140177307
- SAP 1200592303
- Code 82971879
Product Documentation
More from Harting
Harting
Han B Hood Top Entry HC M40
19300240428
Harting
Ha-VIS eCon 3042BT-AF
24030042200
Harting

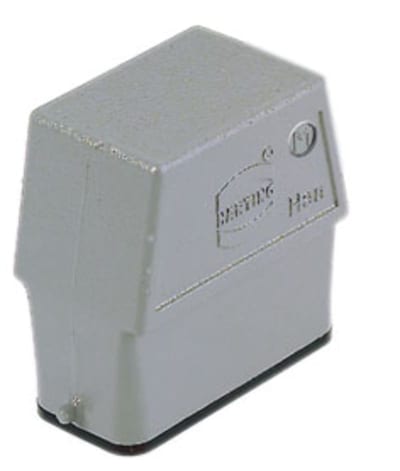

Han A Hood Side Entry HC 2 Pegs M25 (19200100546)
Harting

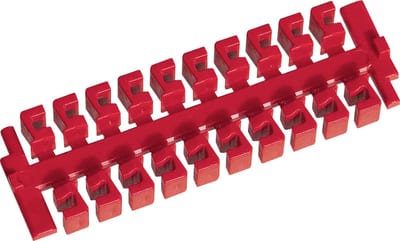

Locking element 20/block
09140009960
Harting
Ha-VIS eCon 3041BT-AF
24030041200
Harting
Ha-VIS eCon 3041GBT-AD-PP
24035041120
Harting
Ha-VIS eCon 3042BT-AD
24030042100
Harting

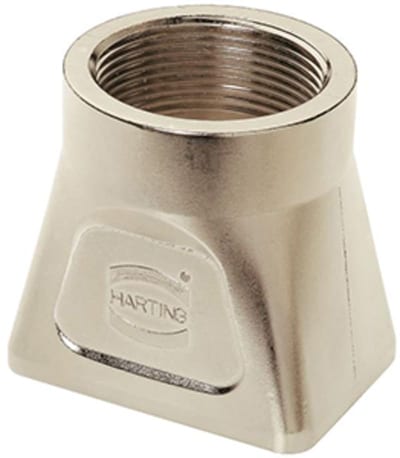

Han-Modular Compact top entry M32
