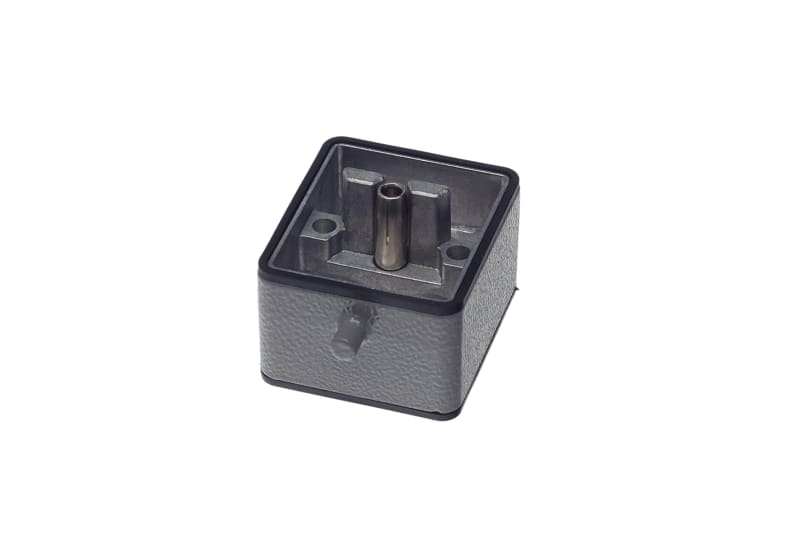

Han 2MOD carrier hood
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09140020311 Manufacturer description: Carrier hood; Size: Modular Twin; Single locking lever; Material (hood/housing): Aluminium die-cast; Powder-coated; RAL 7037 (dust grey); Material (seal): NBR. Han-Modular® Twin Base for cable cover.
Technical Specifications
- Manufacturer part number (MPN)
- 09140020311
- EAN / GTIN
- 5713140019560
- HS code
- 8544.42
- Sales unit
- pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han-Modular® Twin
- Type of hood/housing
- Carrier hood
- Locking type
- Single locking lever
- Size
- Modular Twin
- Han-Easy Lock®
- No
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Stripping length
- 10 mm PE contact
- Tightening torque
- 1 Nm PE screw
- Mating cycles
- 500
- Degree of protection acc. to IEC 60529
- IP65
- ECHA SCIP number
- 564b7d75-7bf6-4cfb-acb1-2168eb61b675
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead | Nickel
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (hood/housing)
- Aluminium die-cast
- Surface (hood/housing)
- Powder-coated
- Colour (hood/housing)
- RAL 7037 (dust grey)
- Material (seal)
- NBR
- Approvals
- CE
- Specifications
- IEC 61984
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 60.6 g
- Country of origin
- Romania
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 5713140019560
- SAP 1200148098
- Code 82036676
Product Documentation
