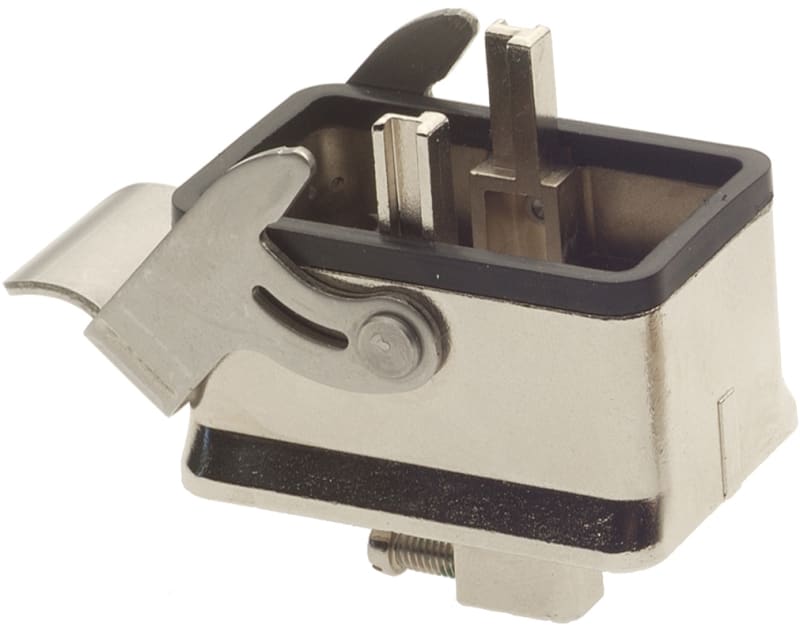

Han-Modular Compact housing
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09140010301 Manufacturer description: Bulkhead mounted housing; Size: Modular Compact; Single locking lever; Stainless steel; Material (hood/housing): Zinc die-cast; Nickel plated; Material (seal): NBR. Han-Modular® Compact Chassis cover.
Technical Specifications
- Manufacturer part number (MPN)
- 09140010301
- EAN / GTIN
- 5713140018969
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han-Modular® Compact
- Type of hood/housing
- Bulkhead mounted housing
- Locking type
- Single locking lever
- Size
- Modular Compact
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Stripping length
- 10 mm PE contact
- Tightening torque
- 1 Nm PE screw
- Mating cycles
- 500
- Degree of protection acc. to IEC 60529
- IP65 locked condition
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Lead | Nickel
- Material (hood/housing)
- Zinc die-cast
- Surface (hood/housing)
- Nickel plated
- Material (seal)
- NBR
- Material (locking)
- Stainless steel
- Approvals
- CE
- Specifications
- IEC 61984
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 84.67 g
- Country of origin
- Romania
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
- Width
- 35 mm
- UV resistant
- No
- Height
- 26.9 mm
- Depth
- 48 mm
- Shape
- Rectangular
- With hinged lid
- No
- Type of locking
- Single locking lever
- Number of conduit inlets
- 1
- With cable screw gland
- No
- EMC-version
- No
- Corrosion resistant
- No
- Length
- 49 mm
- Housing material
- Zinc
- Operating temperature
- -40–125 °C
- With distance piece
- No
- With sealing
- Yes
- Type of housing
- Housing extension
- With interlocking device
- Yes
- Degree of protection (IP), mounted
- IP65
- Material adaptor plate
- Aluminium
- Position of the shackle
- Base unit
- Mounting method of the cable gland
- None
