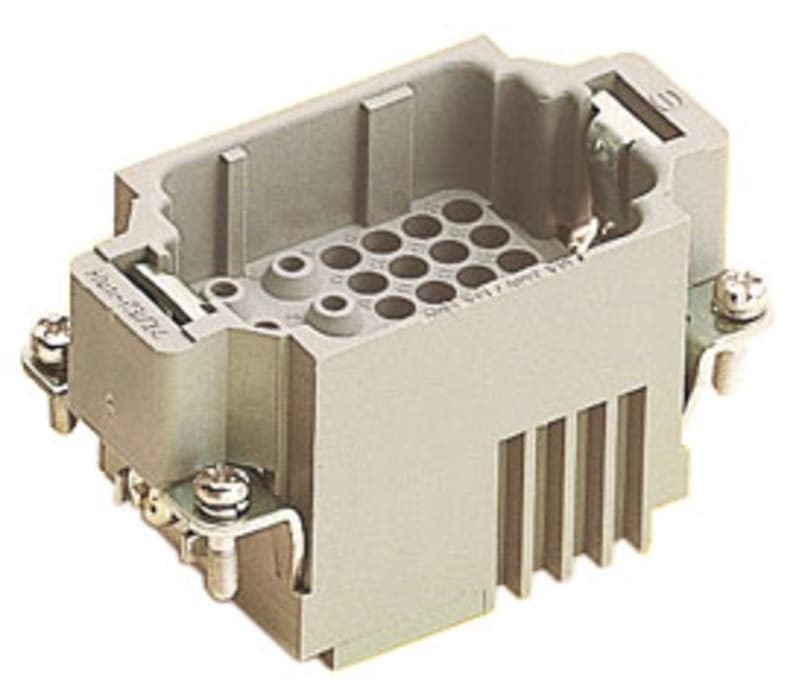

Han K 8/24 Pos. M Insert Crimp

Harting 09380323001 Manufacturer description: Inserts; Crimp termination; Male; Polyamide (PA); RAL 7032 (pebble grey); Rated current: 16 A; Size: 10 B; Contacts: 32; Conductor cross-section: 0.5. 4 mm² Power 0.14. 2.5 mm² Signal. Han® K 8/24 Plug 8 power + 24 signal 16A 230V / 10A 160V.

Manufacturer part number (MPN)

09380323001

EAN / GTIN

5713140056473

Sales unit

pcs

Category

Inserts

Identification

Han® K 8/24

Series

Han-Com®

Termination method

Crimp termination

Gender

Male

Size

10 B

Number of contacts

32

Number of signal contacts

24

Number of power contacts

8

PE contact

Yes

Details

Please order crimp contacts separately.

Conductor cross-section (mm²)

0.5 ... 4 mm² Power | 0.14 ... 2.5 mm² Signal

Rated current acc. to UL (signal)

10 A

Rated current acc. to CSA (signal)

10 A

Rated voltage acc. to UL (signal)

600 V

Rated voltage acc. to CSA (signal)

300 V

Rated current (signal)

10 A

Rated voltage (signal)

160 V

Rated impulse voltage (signal)

2.5 kV

Pollution degree (signal)

3

Rated voltage conductor-conductor (Power)

400 V

Rated voltage conductor-earth (Power)

230 V

Rated current (power)

16 A

Rated impulse voltage (power)

4 kV

Pollution degree (power)

3

Rated current acc. to UL (Power)

16 A

Rated current acc. to CSA (Power)

16 A

Rated voltage acc. to UL (Power)

600 V

Rated voltage acc. to CSA (Power)

300 V

Insulation resistance

>10¹⁰ Ω

Limiting temperature

-40 ... +125 °C

Tightening torque

1.2 Nm PE screw M4

Recommended screw driver

Slotted 0.8 x 4.5 | PH2

Mating cycles

500

China RoHS

e

RoHS

compliant

REACH SVHC substances

Not contained

REACH Annex XVII substances

Not contained

REACH ANNEX XIV substances

Not contained

ELV status

compliant

California Proposition 65 substances

Not contained

Material (insert)

Polyamide (PA)

Colour (insert)

RAL 7032 (pebble grey)

Material flammability class acc. to UL 94

HB

UL / CSA

UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076

Approvals

DNV GL

Specifications

IEC 60664-1 | IEC 61984

European customs tariff number

85389099

Packaging size

1

Net weight

51.3 g

Country of origin

Romania

eCl@ss

27440205 Contact insert for industrial connectors

ETIM

EC000438

UNSPSC 24.0

39121522

Width

34 mm

Height

63.8 mm

Depth

35.7 mm

Shape

Rectangular

With wire protection

No

With housing

No

Suitable for distribution board

No

Number of poles

32

Contact type

Pin

Ambient temperature

-40–125 °C

Operating temperature

-40–125 °C

Rated surge voltage

4 kV

Type of electric connection

Crimp connection

Overvoltage category

III

Diameter plug-in contact

2.5 mm

Contact insert without contacts

No

Connectable conductor cross section solid-core

0.14–4 mm²

Connectable conductor cross section multi-wired

0.5–4 mm²

With protective conductor

Yes

Material connector insert

Thermoplastic

Rated current In

16 A

Material of contact insert

Thermoplastic

Min. number of insertion cycles

500

Number of control contacts

24

HS Code

8536.90
