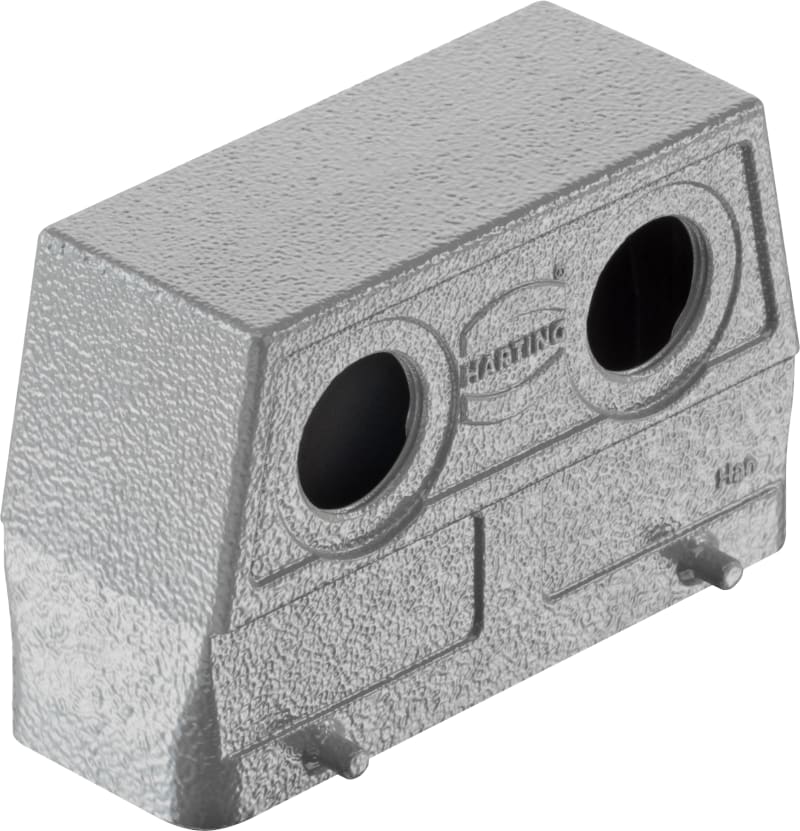

Han B Hood Angled Entry 4 Pegs 2X M25
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 19300160666 Manufacturer description: Hood; Size: 16 B; High construction; Double locking lever; Angled entry; 2x M25; Material (hood/housing): Aluminium die-cast; Powder-coated; RAL 7037 (dust grey). HOOD HAN 16 B 2XM25 IN FRONT.
Technical Specifications
- Manufacturer part number (MPN)
- 19300160666
- EAN / GTIN
- 5713140126220
- Sales unit
- pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han® B
- Type of hood/housing
- Hood
- Type
- High construction
- Locking type
- Double locking lever
- Size
- 16 B
- Version
- Angled entry
- Number of cable entries
- 2
- Cable entry
- 2x M25
- Field of application
- Standard hoods/housings for industrial connectors
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Mating cycles
- 500
- Degree of protection acc. to IEC 60529
- IP65 | IP66 | IP67
- Type rating acc. to UL 50 / UL 50E
- 4 | 4X | 12
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R1 (HL 1-3) | R7 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Lead | Nickel
- Material (hood/housing)
- Aluminium die-cast
- Surface (hood/housing)
- Powder-coated
- Colour (hood/housing)
- RAL 7037 (dust grey)
- UL / CSA
- UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076
- Approvals
- CE | DNV GL
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 200 g
- Country of origin
- Germany
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
- Width
- 43 mm
- UV resistant
- No
- Height
- 76 mm
- Depth
- 76 mm
- Shape
- Rectangular
- With hinged lid
- No
- Housing colour
- Grey
- Type of locking
- Double locking lever
- Number of conduit inlets
- 2
- With cable screw gland
- No
- EMC-version
- No
- Corrosion resistant
- No
- Length
- 43 mm
- Housing material
- Aluminium
- Coating housing
- Powder coating
- Operating temperature
- -40–125 °C
- With distance piece
- No
- With sealing
- No
- Type of housing
- Plug case
- With interlocking device
- Yes
- Degree of protection (IP), mounted
- IP65
- Position cable feed
- Sideways
- Position of the shackle
- Base unit
- Mounting method of the cable gland
- Metric
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 5713140126220
- SAP 1000686076
- Code 8293633
Product Documentation
More from Harting
Harting
Han EE Quick-Lock module, female
09140082733
Harting
Han 32B-GG-R-M50 (19300320429)
Harting
Han-Eco 6B OUTD-HSM1-W. SL-M20-COV.-GL.
19433060255
Harting
Hood Top Entry HC 2 Pegs M25
19300060446
Harting
Han-Eco 24B-HTE-FOR DL-M32-GLANDED
19431240427
Harting
Han 3A-HTE-M25 PC black w. seal
19200030436
Harting
Han-Eco 10B-COVER-FOR DL-w. cord-HBM-HSM
19430105425
Harting
Han B Base SM LC 1 lever 2 x M20
19300101295
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 19300160666?
- 19300160666 can be ordered from cballast.com as a Harting catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Harting product?
- The manufacturer part number is 19300160666.
- What is the HS code for 19300160666?
- The customs tariff (HS) code for 19300160666 is 8538.90.
- Who manufactures 19300160666?
- 19300160666 is a Harting product in the Electrical Components range.
- Is a datasheet available for 19300160666?
- Yes — the 19300160666 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 19300160666?
- The minimum order quantity is 1.
- Is 19300160666 available?
- Yes — 19300160666 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
