Hood Top Entry HC 2 Pegs M25
Pricing
Request a quote
We reply within 24 hours
Product Description

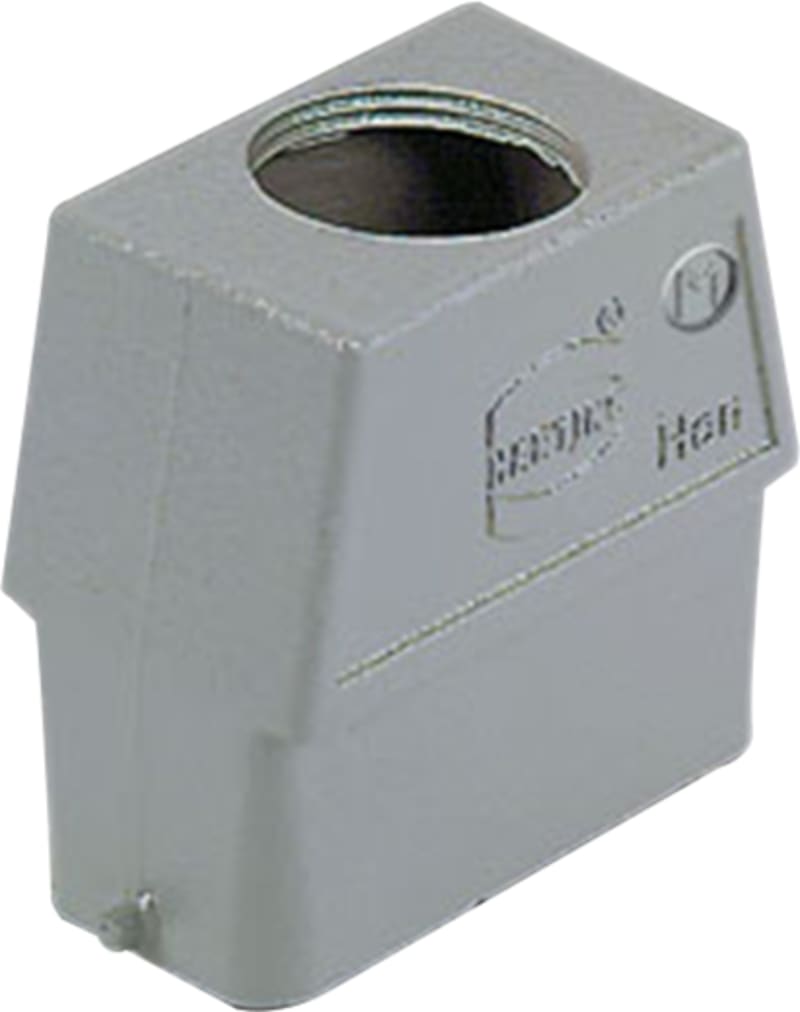

Harting 19300060446 Manufacturer description: Hood; Size: 6 B; High construction; Single locking lever; Top entry; 1x M25; Material (hood/housing): Aluminium die-cast; Powder-coated; RAL 7037 (dust grey). HOOD HAN 6 B M25 TOP ENTRY.
Technical Specifications
- Manufacturer part number (MPN)
- 19300060446
- EAN / GTIN
- 5713140125032
- Sales unit
- pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han® B
- Type of hood/housing
- Hood
- Type
- High construction
- Locking type
- Single locking lever
- Size
- 6 B
- Version
- Top entry
- Number of cable entries
- 1
- Cable entry
- 1x M25
- Field of application
- Standard hoods/housings for industrial connectors
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Mating cycles
- 500
- Degree of protection acc. to IEC 60529
- IP65 | IP66 | IP67
- Type rating acc. to UL 50 / UL 50E
- 4 | 4X | 12
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R1 (HL 1-3) | R7 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Not contained
- Material (hood/housing)
- Aluminium die-cast
- Surface (hood/housing)
- Powder-coated
- Colour (hood/housing)
- RAL 7037 (dust grey)
- UL / CSA
- UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076
- Approvals
- CE | DNV GL
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 26.188 g
- Country of origin
- Germany
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
- Width
- 43 mm
- UV resistant
- No
- Height
- 72 mm
- Depth
- 72 mm
- Shape
- Rectangular
- With hinged lid
- No
- Housing colour
- Grey
- Type of locking
- Single locking lever
- Number of conduit inlets
- 1
- With cable screw gland
- No
- EMC-version
- No
- Corrosion resistant
- No
- Length
- 43 mm
- Housing material
- Aluminium
- Coating housing
- Powder coating
- Operating temperature
- -40–125 °C
- With distance piece
- No
- With sealing
- No
- Type of housing
- Plug case
- With interlocking device
- Yes
- Degree of protection (IP), mounted
- IP65
- Position cable feed
- Atop
- Position of the shackle
- Base unit
- Mounting method of the cable gland
- Metric
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 5713140125032
- SAP 1000299858
- Code 8167072
Product Documentation
More from Harting
Harting
Han-Eco 24B-HTE-FOR DL-M32-GLANDED
19431240427
Harting
Han 3A-HTE-M25 PC black w. seal
19200030436
Harting

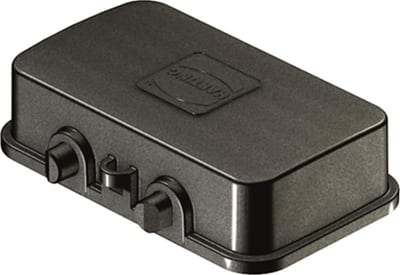

Han-Eco 10B-COVER-FOR DL-w. cord-HBM-HSM
19430105425
Harting

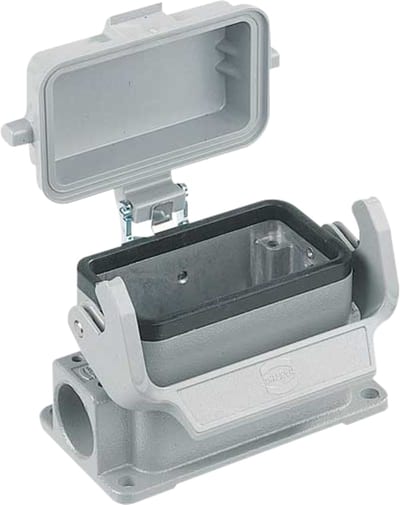

Han B Base SM LC 1 lever 2 x M20
19300101295
Harting

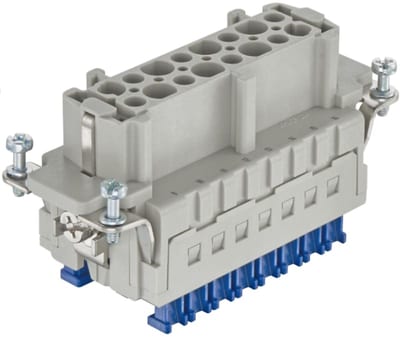

Han 16ES Press - F (09330162748)
Harting

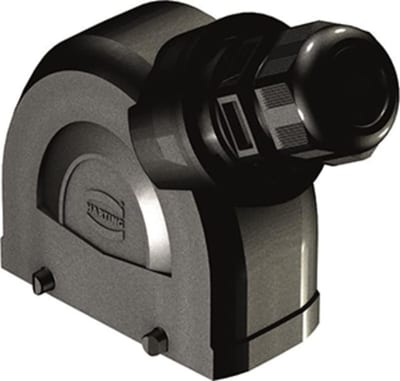

Han-Eco 16B-HSE-FOR DL-M25-GLANDED
19431160526
Harting

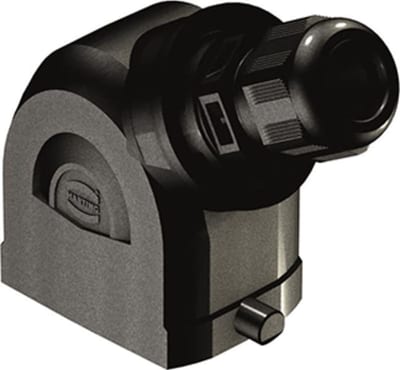

Han-Eco 6B-HSE-FOR SL-M25-GLANDED
19431060546
Harting

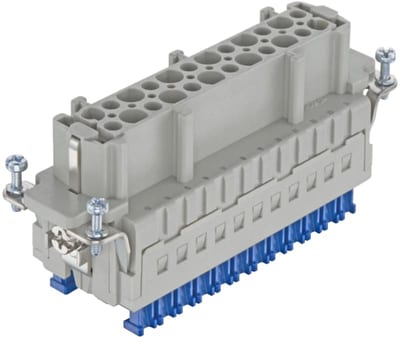

Han 24ES Press - F (09330242748)
