Harting

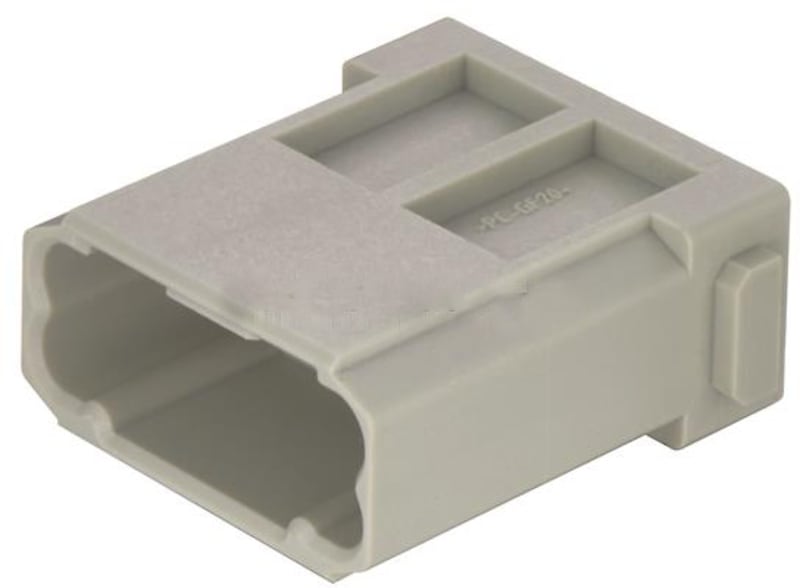

Han 70A axial module, female 14-22 mm²
Part number09140022742EAN / GTIN5713140019775HS code8538.90
Electrical Components
Heavy-Duty Connectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09140022742 Manufacturer description: Han® 70 A module; Single module; Axial screw termination; Female; Contacts: 2; Conductor cross-section: 14. 22 mm²; Rated current: 70 A; Polycarbonate (PC); RAL 7032 (pebble grey); Copper alloy; Silver plated. Han 70A axial module, female 14-22 mm².
Technical Specifications
- Manufacturer part number (MPN)
- 09140022742
- EAN / GTIN
- 5713140019775
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Category
- Modules
- Type of module
- Han® 70 A module
- Size of the module
- Single module
- Series
- Han-Modular®
- Termination method
- Axial screw termination
- Gender
- Female
- Number of contacts
- 2
- Conductor cross-section (mm²)
- 14 ... 22 mm²
- Wire outer diameter
- ≤10 mm
- Rated current
- 70 A
- Rated voltage
- 1000 V
- Rated impulse voltage
- 8 kV
- Pollution degree
- 3
- Rated voltage acc. to UL
- 600 V
- Insulation resistance
- >10¹⁰ Ω
- Contact resistance
- 0.5 mΩ
- Limiting temperature
- -40 ... +125 °C
- Stripping length
- 12.5 ... 13.5 mm
- Tightening torque
- 4 Nm @ 14 mm² | 4 Nm @ 16 mm² | 4 Nm @ 22 mm²
- Mating cycles
- 500
- ECHA SCIP number
- 5dbb3851-b94e-4e88-97a1-571845975242
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead | Nickel
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (insert)
- Polycarbonate (PC)
- Colour (insert)
- RAL 7032 (pebble grey)
- Material (contacts)
- Copper alloy
- Surface (contacts)
- Silver plated
- Material flammability class acc. to UL 94
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076 | UL 2237 PVVA2.E318390 | CSA-C22.2 No. 182.3 PVVA8.E318390
- Approvals
- DNV GL
- Specifications
- IEC 60664-1 | IEC 61984 | IEC 61373 Category 2
- European customs tariff number
- 85389099
- Packaging size
- 2
- Net weight
- 29 g
- Country of origin
- Germany
- eCl@ss
- 27440217 Module for industrial connectors (power/signals)
- ETIM
- EC000438
- UNSPSC 24.0
- 39121552
- With wire protection
- No
- Number of poles
- 2
- Contact type
- Bus
- Ambient temperature
- -40–125 °C
- Operating temperature
- -40–125 °C
- Rated surge voltage
- 8 kV
- Type of electric connection
- Axial screw connection
- Material of contact surface
- Silver
- Overvoltage category
- III
- Diameter plug-in contact
- 6 mm
- Contact insert without contacts
- No
- Connectable conductor cross section multi-wired
- 14–22 mm²
- With protective conductor
- Yes
- Material contact
- Other copper alloys
- Material connector insert
- Thermoplastic
- Rated current In
- 70 A
- Material of contact insert
- Thermoplastic
- Min. number of insertion cycles
- 500
- Number of power contacts
- 2
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 5713140019775
- SAP 1200111654
- Code 81964579
Product Documentation
Document preview: HARTING 09140022742 — Data Sheet (OEM)
