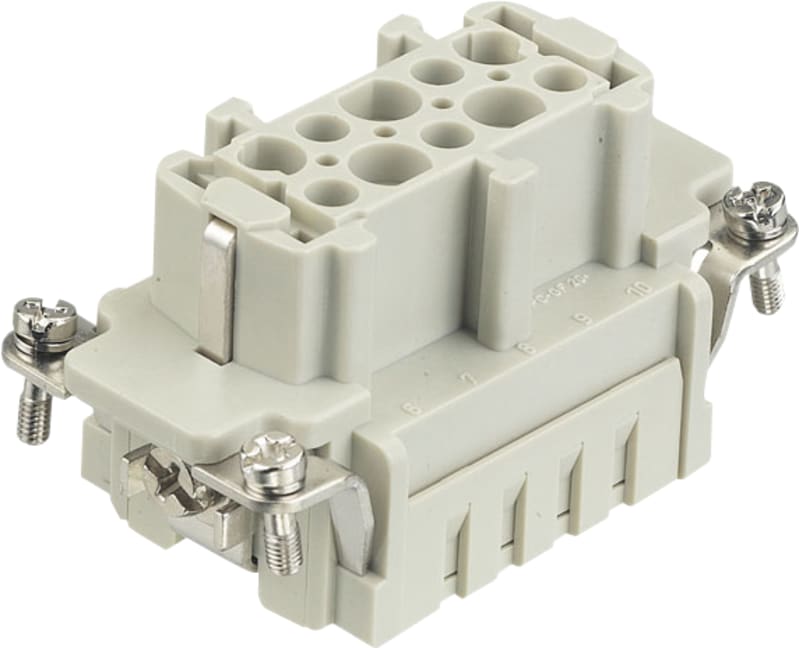

Han 10E insert female crimp

Harting 09330102702 Manufacturer description: Inserts; Crimp termination; Female; Polycarbonate (PC); RAL 7032 (pebble grey); Rated current: 16 A; Size: 10 B; Contacts: 10; Conductor cross-section: 0.14. 4 mm². HAN 10E INSERT FEMALE CRIMP.

Manufacturer part number (MPN)

09330102702

EAN / GTIN

5713140051096

Sales unit

pcs

Category

Inserts

Series

Han E®

Termination method

Crimp termination

Gender

Female

Size

10 B

Number of contacts

10

PE contact

Yes

Details

Please order crimp contacts separately.

Conductor cross-section (mm²)

0.14 ... 4 mm²

Conductor cross-section (AWG)

AWG 26 ... AWG 12

Rated voltage acc. to CSA

600 V

Rated current

16 A

Rated voltage

500 V

Rated impulse voltage

6 kV

Pollution degree

3

Rated voltage acc. to UL

600 V

Insulation resistance

>10¹⁰ Ω

Limiting temperature

-40 ... +125 °C

Tightening torque

1.2 Nm PE screw M4

Recommended screw driver

Slotted 0.8 x 4.5 | PH2

Mating cycles

500

ECHA SCIP number

5dbb3851-b94e-4e88-97a1-571845975242

Fire protection on railway vehicles

EN 45545-2 (2020-08) + A1 (2023-10)

China RoHS

50

RoHS

compliant with exemption

REACH SVHC substances

Yes | Lead

REACH Annex XVII substances

Not contained

REACH ANNEX XIV substances

Not contained

Requirement set with Hazard Levels

R22 (HL 1-3) | R23 (HL 1-3)

ELV status

compliant with exemption

California Proposition 65 substances

Yes | Lead

RoHS exemptions

6(c): Copper alloy containing up to 4 % lead by weight

Material (insert)

Polycarbonate (PC)

Colour (insert)

RAL 7032 (pebble grey)

Material flammability class acc. to UL 94

V-0

UL / CSA

UL 1977 ECBT2.E235076 | UL 2237 PVVA2.E318390 | CSA-C22.2 No. 182.3 PVVA8.E318390

Approvals

DNV GL

Specifications

IEC 60664-1 | IEC 61984

European customs tariff number

85366990

Packaging size

1

Net weight

45.469 g

Country of origin

Germany

eCl@ss

27440205 Contact insert for industrial connectors

ETIM

EC000438

UNSPSC 24.0

39121522

Width

34 mm

Height

63.8 mm

Depth

35.5 mm

Shape

Rectangular

With wire protection

No

With housing

No

Suitable for distribution board

No

Number of poles

10

Contact type

Bus

Ambient temperature

-40–125 °C

Operating temperature

-40–125 °C

Rated surge voltage

6 kV

Type of electric connection

Crimp connection

Overvoltage category

III

Diameter plug-in contact

2.5 mm

Contact insert without contacts

No

Connectable conductor cross section solid-core

0.14–4 mm²

Connectable conductor cross section multi-wired

0.14–4 mm²

With protective conductor

Yes

Material connector insert

Thermoplastic

Rated current In

16 A

Material of contact insert

Thermoplastic

Min. number of insertion cycles

500

Number of power contacts

10

HS Code

8538.90
