Harting

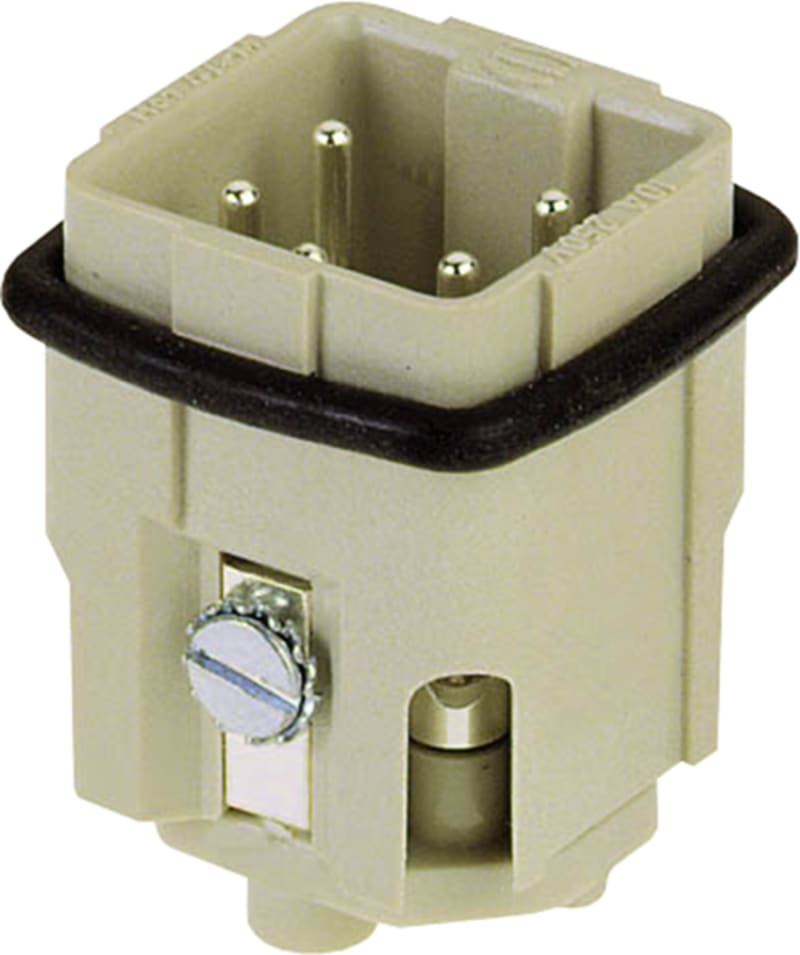

Han 4A-STI-S (09200042611)
Part number09200042611EAN / GTIN5713140039070HS code8536.69
Electrical Components
Heavy-Duty Connectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09200042611 Manufacturer description: Inserts; Screw termination; Male; Polycarbonate (PC); RAL 7032 (pebble grey); Rated current: 10 A; Size: 3 A; Contacts: 4; Conductor cross-section: 0.75. 1.5 mm²; Copper alloy; Silver plated. HAN A 04 POS. M INSERT SCREW.
Technical Specifications
- Manufacturer part number (MPN)
- 09200042611
- EAN / GTIN
- 5713140039070
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Category
- Inserts
- Series
- Han A®
- Termination method
- Screw termination
- Gender
- Male
- Size
- 3 A
- Number of contacts
- 4
- PE contact
- Yes
- Conductor cross-section (mm²)
- 0.75 ... 1.5 mm²
- Rated current
- 10 A
- Rated voltage conductor-earth
- 230 V
- Rated voltage conductor-conductor
- 400 V
- Rated impulse voltage
- 4 kV
- Pollution degree
- 3
- Rated voltage acc. to UL
- 600 V
- Insulation resistance
- >10¹⁰ Ω
- Limiting temperature
- -40 ... +125 °C
- Stripping length
- 2.5 ... 5.5 mm
- Tightening torque
- 0.25 Nm Contact screw M3
- Recommended screw driver
- Slotted 0.4 x 2.5 | Slotted 0.6 x 3.5
- Mating cycles
- 500
- ECHA SCIP number
- 5dbb3851-b94e-4e88-97a1-571845975242
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (insert)
- Polycarbonate (PC)
- Colour (insert)
- RAL 7032 (pebble grey)
- Material (contacts)
- Copper alloy
- Surface (contacts)
- Silver plated
- Material flammability class acc. to UL 94
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076
- Approvals
- DNV GL
- Specifications
- IEC 60664-1 | IEC 61984
- European customs tariff number
- 85366990
- Packaging size
- 10
- Net weight
- 14.2 g
- Country of origin
- Romania
- eCl@ss
- 27440205 Contact insert for industrial connectors
- ETIM
- EC000438
- UNSPSC 24.0
- 39121522
- Width
- 21 mm
- Height
- 21 mm
- Depth
- 30.5 mm
- Rated voltage
- 600 V
- With wire protection
- No
- With housing
- No
- Suitable for distribution board
- No
- Number of poles
- 4
- Contact type
- Pin
- Ambient temperature
- -40–125 °C
- Operating temperature
- -40–125 °C
- Rated surge voltage
- 4 kV
- Type of electric connection
- Screw connection
- Material of contact surface
- Silver
- Overvoltage category
- III
- Diameter plug-in contact
- 1.6 mm
- Contact insert without contacts
- No
- Connectable conductor cross section solid-core
- 0.75–1.5 mm²
- Connectable conductor cross section multi-wired
- 0.75–1.5 mm²
- With protective conductor
- Yes
- Material contact
- Other copper alloys
- Material connector insert
- Thermoplastic
- Rated current In
- 10 A
- Material of contact insert
- Thermoplastic
- Min. number of insertion cycles
- 500
- Number of power contacts
- 4
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 5713140039070
- SAP 1000444511
- Code 8541968
Product Documentation
Document preview: HARTING 09200042611 — Data Sheet (OEM)
