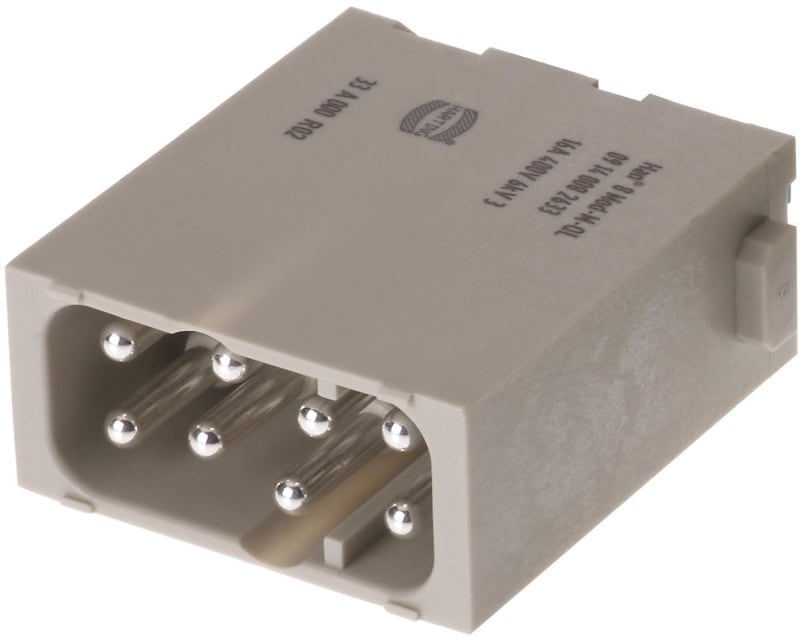

Han EE Quick-Lock module, male

Harting 09140082633 Manufacturer description: Han® EE module; Single module; Han-Quick Lock® termination; Male; Contacts: 8; Conductor cross-section: 0.5. 2.5 mm²; Rated current: 16 A; Polycarbonate (PC); RAL 7032 (pebble grey); Copper alloy; Silver plated. Han-Modular®, Plug Han® EE module 8-pole with Han-Quick Lock® connection.

Manufacturer part number (MPN)

09140082633

EAN / GTIN

5713140020580

Sales unit

pcs

Package quantity

2 pcs

Category

Modules

Type of module

Han® EE module

Size of the module

Single module

Series

Han-Modular®

Termination method

Han-Quick Lock® termination

Gender

Male

Number of contacts

8

Details

Blue slide | for stranded wire according to IEC 60228 Class 5

Conductor cross-section (mm²)

0.5 ... 2.5 mm²

Wire outer diameter

≤3.6 mm

Rated current

16 A

Rated voltage

400 V

Rated impulse voltage

6 kV

Pollution degree

3

Rated voltage acc. to UL

600 V

Insulation resistance

>10¹⁰ Ω

Contact resistance

1 mΩ

Limiting temperature

-40 ... +125 °C

Stripping length

10 mm

Mating cycles

500

ECHA SCIP number

5dbb3851-b94e-4e88-97a1-571845975242

Fire protection on railway vehicles

EN 45545-2 (2020-08) + A1 (2023-10)

China RoHS

50

RoHS

compliant with exemption

REACH SVHC substances

Yes | Lead

REACH Annex XVII substances

Not contained

REACH ANNEX XIV substances

Not contained

Requirement set with Hazard Levels

R22 (HL 1-3) | R23 (HL 1-3)

ELV status

compliant with exemption

California Proposition 65 substances

Yes | Lead | Nickel

RoHS exemptions

6(c): Copper alloy containing up to 4 % lead by weight

Material (insert)

Polycarbonate (PC)

Colour (insert)

RAL 7032 (pebble grey)

Material (contacts)

Copper alloy

Surface (contacts)

Silver plated

Material flammability class acc. to UL 94

V-0

UL / CSA

UL 1977 ECBT2.E235076 | UL 2237 PVVA2.E318390 | CSA-C22.2 No. 182.3 PVVA8.E318390

Approvals

DNV GL

Specifications

IEC 60664-1 | IEC 61984 | IEC 61373 Category 1 Class B

European customs tariff number

85366990

Packaging size

2

Net weight

21.62 g

Country of origin

Romania

eCl@ss

27440217 Module for industrial connectors (power/signals)

ETIM

EC000438

UNSPSC 24.0

39121552

Width

15 mm

Height

35 mm

Depth

42 mm

Shape

Rectangular

With wire protection

No

With housing

No

Suitable for distribution board

No

Number of poles

8

Contact type

Pin

Ambient temperature

-40–125 °C

Operating temperature

-40–125 °C

Rated surge voltage

6 kV

Type of electric connection

Spring clamp connection

Material of contact surface

Silver

Overvoltage category

III

Diameter plug-in contact

2.5 mm

Contact insert without contacts

No

Connectable conductor cross section multi-wired

0.5–2.5 mm²

With protective conductor

No

Material contact

Other copper alloys

Material connector insert

Thermoplastic

Rated current In

16 A

Material of contact insert

Thermoplastic

Min. number of insertion cycles

500

Number of power contacts

8

HS Code

8536.90
