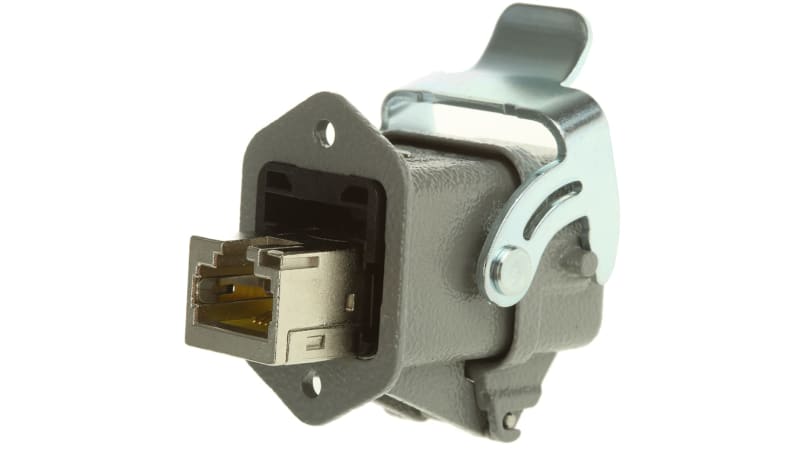

HAN3A RJ45 10G CAT6A PFT 8P with cover
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09452151562 Manufacturer description: Connectors; Panel feed through Straight, with self-closing cover; Contacts: 8; Size: 3 A; Material: Zinc die-cast; Powder-coated; Degree of protection: IP65, IP67. Han3A RJ45 10G Cat6 PFT 8p with cover.
Technical Specifications
- Manufacturer part number (MPN)
- 09452151562
- EAN / GTIN
- 5713140059719
- Sales unit
- pcs
- Category
- Connectors
- Series of hoods/housings
- Han A®
- Element
- Panel feed through
- Specification
- Straight, with self-closing cover
- Series
- RJ45
- Features
- Suitable for all PoE versions
- Size
- 3 A
- Shielding
- Fully shielded, 360° shielding contact
- Number of contacts
- 8
- Fixing
- Screwable in cover plates
- Limiting temperature
- -40 ... +70 °C
- Mating cycles
- 500
- Degree of protection acc. to IEC 60529
- IP65 | IP67
- Transmission characteristics
- Cat. 6 Class E up to 250 MHz
- Data rate
- 10 Mbit/s | 100 Mbit/s | 1 Gbit/s | 2.5 Gbit/s | 5 Gbit/s | 10 Gbit/s
- ECHA SCIP number
- be45dcda-0f90-459a-a8bc-78fb7986a295
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead | Nickel
- RoHS exemptions
- 6(a)-I: Lead as an alloying element in steel for machining purposes containing up to 0,35 % lead by weight
- Material (hood/housing)
- Zinc die-cast
- Surface (hood/housing)
- Powder-coated
- Colour (hood/housing)
- Grey
- UL / CSA
- UL 1977 ECBT2.E102079 | CSA-C22.2 No. 182.3 ECBT8.E102079
- PROFINET
- Yes
- Approvals
- DNV GL
- European customs tariff number
- 85366990
- Packaging size
- 1
- Net weight
- 115.035 g
- Country of origin
- Romania
- eCl@ss
- 27440113 Rectangular connectors (set)
- ETIM
- EC002636
- UNSPSC 24.0
- 39121408
- Number of poles
- 8
- Housing material
- Zinc
- Coating housing
- Powder coating
- Operating temperature
- -40–70 °C
- Degree of protection (IP), mounted
- IP65
- EMC-version
- Yes
- With sealing
- No
Standards & Compliance
- HS Code
- 8504.50
Cross References
- EAN 5713140059719
- SAP 1200181495
- Code 82112571
Product Documentation
More from Harting
Harting
Han B Base SM LC Metal Cove 2 x M25
19300162296
Harting
Han CGM-M M20X1,5 D.6-12MM
19000005082
Harting
Han CGM-M M20X1,5 D.5-9MM
19000005080
Harting
Han B Hood Side Entry M25
19300241541
Harting
Han 16A-STI-C (09200163001)
Harting

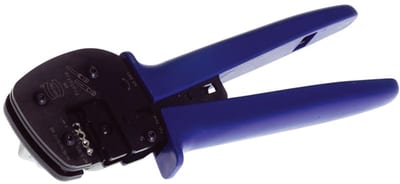

Han Hand Crimp Tool (09990000110)
