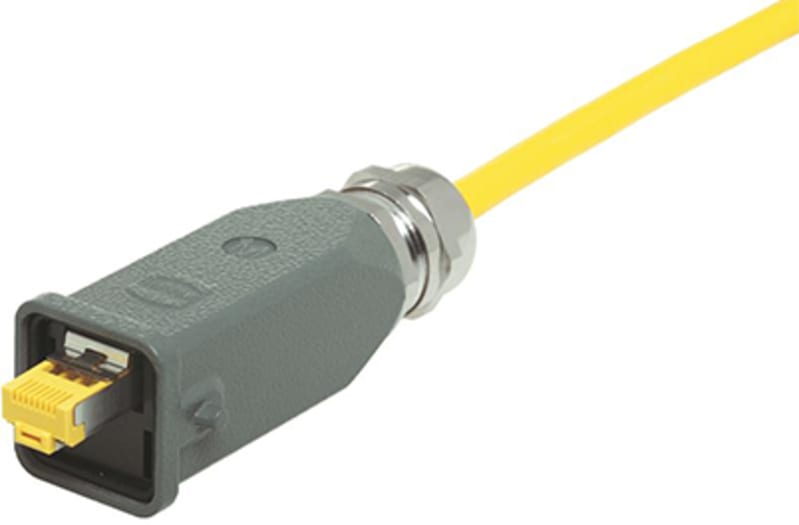

HAN3A RJ45 10G CAT6 plug 8P IDC

Harting 09451151560 Manufacturer description: Connectors; Cable connector; IDC insulation displacement termination; Contacts: 8; Hood; Straight; Size: 3 A; Material: Zinc die-cast; Degree of protection: IP65, IP67. Han 3A, RJ45 Plug, metal 10G IP67.

Manufacturer part number (MPN)

09451151560

EAN / GTIN

5713140058835

Sales unit

pcs

Category

Connectors

Series of hoods/housings

Han A®

Element

Cable connector

Series

RJ45

Type of hood/housing

Hood

Description of hood/housing

Straight

Features

Suitable for all PoE versions

Termination method

IDC insulation displacement termination

Size

3 A

Shielding

Fully shielded, 360° shielding contact

Number of contacts

8

Pack contents

Connector insert | Hoods / Housings | Cable gland | Assembly instructions

Conductor cross-section (mm²)

0.1 ... 0.32 mm² Stranded | 0.22 ... 0.32 mm² Solid

Conductor cross-section (AWG)

AWG 27/7 ... AWG 22/7 Stranded | AWG 27/1 ... AWG 22/1 Solid

Wire outer diameter

1.6 mm

Limiting temperature

-40 ... +70 °C

Storage temperature

+5 ... +50 °C

Degree of protection acc. to IEC 60529

IP65 | IP67

Cable diameter

5 ... 9 mm

Data rate

10 Mbit/s | 100 Mbit/s | 1 Gbit/s | 2.5 Gbit/s | 5 Gbit/s | 10 Gbit/s

Vibration resistance

10-500 Hz, 5 g, 0.35 mm, 2h/axis | 7.9 m/s² acc. to IEC 61373 Category 1 Class B

Shock resistance

5 g / 30 ms, 5 shocks / axis and direction acc. to IEC 61373 Category 1 Class B

ECHA SCIP number

95981c57-f4da-4b43-8b2d-dc44e2781be3

China RoHS

50

RoHS

compliant with exemption

REACH SVHC substances

Yes | 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol | Lead | 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

REACH Annex XVII substances

Not contained

REACH ANNEX XIV substances

Not contained

ELV status

compliant with exemption

California Proposition 65 substances

Yes | Lead | Nickel

RoHS exemptions

6(c): Copper alloy containing up to 4 % lead by weight

Material (hood/housing)

Zinc die-cast

Colour (hood/housing)

Grey

UL / CSA

UL 1977 ECBT2.E102079 | CSA-C22.2 No. 182.3 ECBT8.E102079

PROFINET

Yes

Approvals

DNV GL

European customs tariff number

85366990

Packaging size

1

Net weight

100 g

Country of origin

Romania

eCl@ss

27440113 Rectangular connectors (set)

ETIM

EC002636

UNSPSC 24.0

39121408

Width

35.3 mm

Height

26.9 mm

Depth

99.35 mm

Number of poles

8

Rated voltage

24 V

Pollution degree

2

Connectable conductor cross section solid-core

0.1–0.32 mm²

Connectable conductor cross section multi-wired

0.1–0.32 mm²

Housing material

Zinc

With protective conductor

No

Operating temperature

-40–70 °C

Degree of protection (IP), mounted

IP65

EMC-version

Yes

Number of conduit inlets

1

With sealing

No

HS Code

8536.90

• EAN 5713140058835
• SAP 1000704526
• Code 8320291
