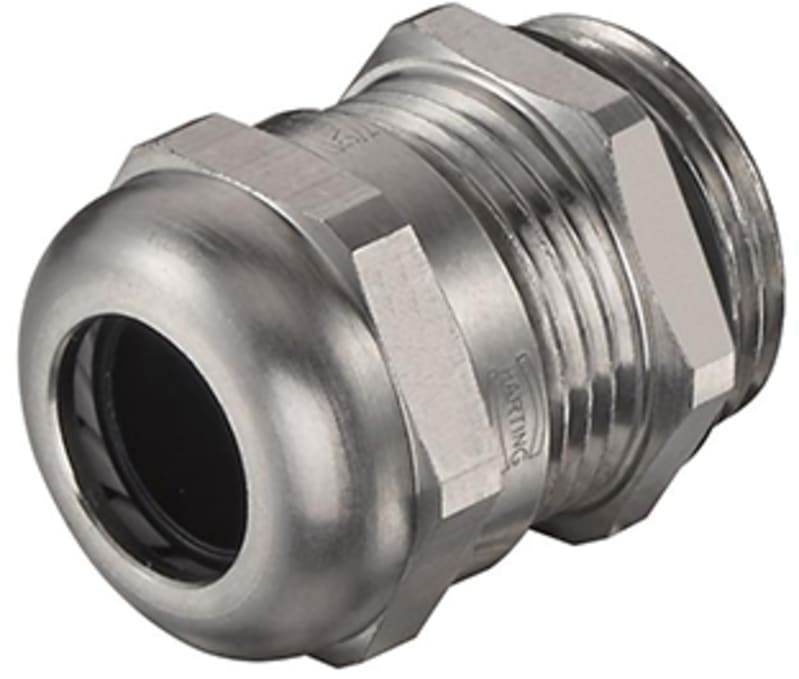

Han CGM-M M40X1,5 D.20-26MM
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 19000005097 Manufacturer description: Cable gland; M40; Clamping range: 20. 26 mm; Material (cable glands): Brass; Material (clamping ring): Polyamide (PA); IP68, IP69 / IPX9K acc. to ISO 20653; Wrench size: 50. Nipple, M40, Klem dia: 20. 26mm, Brass, Nickel plated.
Technical Specifications
- Manufacturer part number (MPN)
- 19000005097
- EAN / GTIN
- 5713140123830
- Sales unit
- pcs
- Category
- Accessories
- Series of hoods/housings
- Han® CGM-M
- Type of accessory
- Cable gland
- Limiting temperature
- -40 ... +100 °C
- Tightening torque
- ≤15 Nm (depending on the cable and the seal insert used)
- Wrench size
- 50
- Degree of protection acc. to IEC 60529
- IP68 | IP69 / IPX9K acc. to ISO 20653
- Size
- M40
- Clamping range
- 20 ... 26 mm
- Width across corners
- 55 mm
- ECHA SCIP number
- 6d86e660-27db-4390-811a-374604e3d289
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead | Nickel
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (seal)
- NBR
- Material (cable glands)
- Brass
- Material (clamping ring)
- Polyamide (PA)
- Surface (accessories)
- Nickel plated
- UL / CSA
- UL 514B QCRV.E479780 | CSA-C22.2 No. 18.3 QCRV7.E479780
- Approvals
- DNV GL
- European customs tariff number
- 74122000
- Packaging size
- 1
- Net weight
- 180.9 g
- Country of origin
- Germany
- eCl@ss
- 27140801 Screwed cable gland (electrical)
- ETIM
- EC000441
- UNSPSC 24.0
- 39121431
- Thread type
- None
- Nominal thread size metric/PG
- 40
- Pitch thread
- 1.5 mm
- Thread length
- 8 mm
- Wrench width
- 50 mm
- Hexagon angular dimension
- 55 mm
- Suitable for cable diameter
- 20–26 mm
- Surface protection
- Nickel-plated
- Halogen free
- No
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP68
- Shock resistant
- Yes
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- No
- Type of sealing
- Sealing ring
- Separable screw gland
- No
- Operating temperature
- -40–100 °C
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- EMC-version
- No
- Screened
- Yes
Standards & Compliance
- HS Code
- 8484.90
