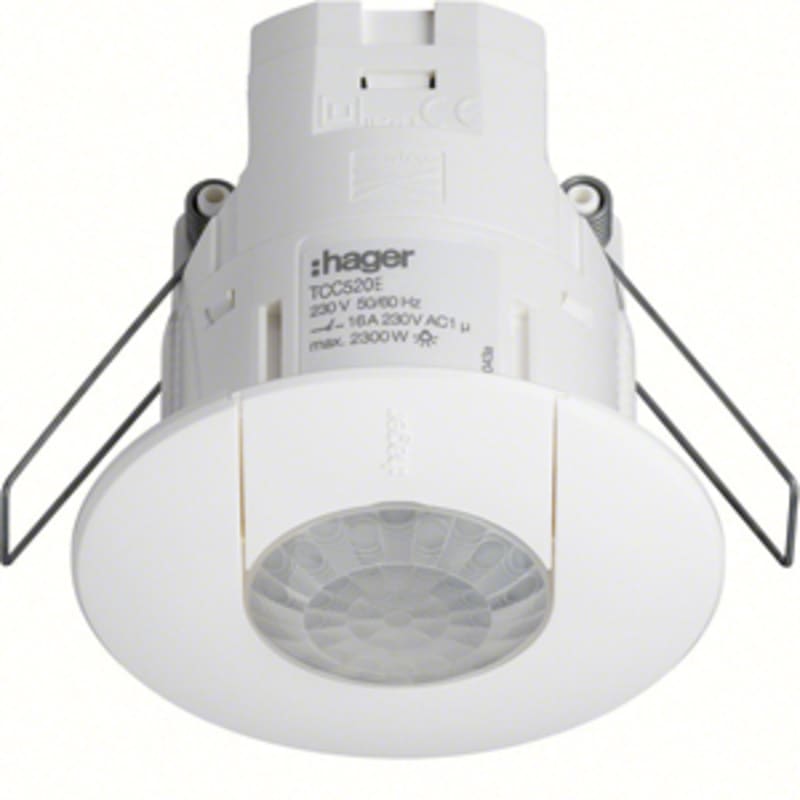

Hager TCC520E Ceiling Presence Detector 360 Degrees KNX
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager TCC520E is a ceiling-mounted 360-degree presence detector with an integrated KNX bus interface. Optimum mounting height is 4 m with a floor-diameter reach of 7 m and horizontal detection angle of 360 degrees. Switching power is rated to 2300 W with an adjustable duty cycle up to 60 minutes. Housing is thermoplastic in RAL 9010 matt white.
Technical Specifications
- Manufacturer part number (MPN)
- TCC520E
- EAN / GTIN
- 3250617579407
- Sales unit
- pcs
- Package quantity
- 24 pcs
- With acoustic sensor
- No
- With connection cable
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- None
- Radio frequency bidirectional
- No
- Model
- Presence detector
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Surface finishing
- Matt
- Colour
- White
- RAL-number (similar)
- 9010
- Transparent
- No
- With bus connection
- No
- Substation input
- No
- Creep-under protection
- No
- Operation mode switch
- No
- Animal zone
- Yes
- Staircase light controller
- No
- Response value luminosity adjustable
- No
- Teach-function for response value luminosity
- No
- Switch-off delay self-learning
- No
- DALI-2 certified
- No
- Optimum mounting height
- 4 m
- Max. reach sideways
- 8 m
- Max. reach frontally
- 7 m
- Diameter reach on floor
- 7 m
- Detection angle vertical
- 55 °
- Detection angle horizontal
- 360 °
- Number of channels
- 1
- Switching power
- 2300 W
- Min. switch-on time
- 60 s
- Max. duty cycle
- 60 min
- Width
- 85 mm
- Height
- 92 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 3250617579407
- SAP 1000689610
- Code 891771
