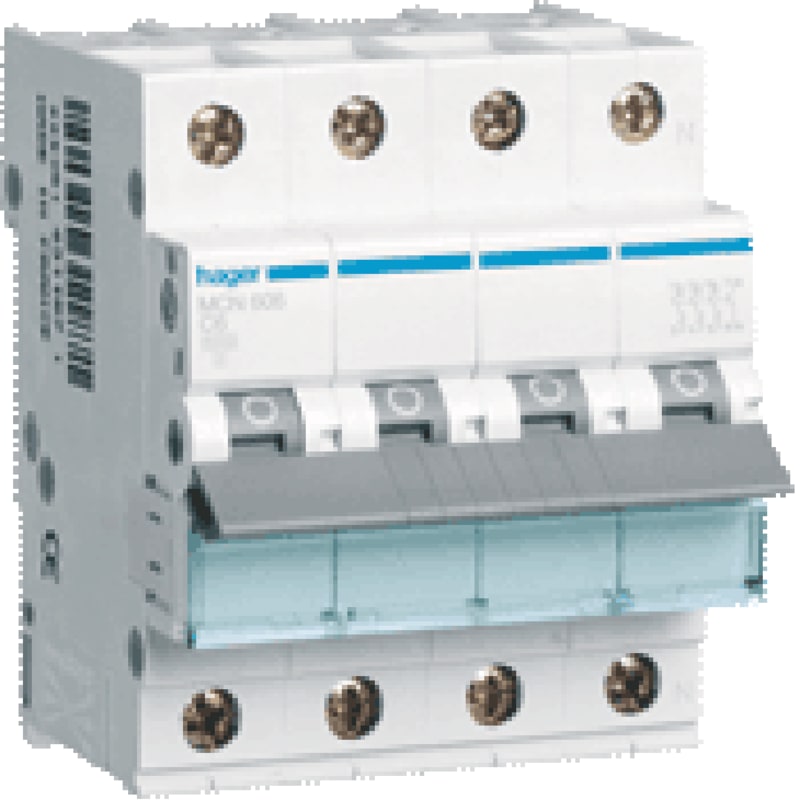

Miniature Circuit Breaker 4X16A C-Curve 10KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer NCN416 Miniature circuit breaker 10kA 4-pole 16A C.
Technical Specifications
- Manufacturer part number (MPN)
- NCN416
- EAN / GTIN
- 3250614615078
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Breaking capacity
- 10 kA
- Power loss
- 11.08 W
- Built-in depth
- 70 mm
- Release characteristic
- C
- Number of poles (total)
- 4
- Number of protected poles
- 4
- Rated current
- 16 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 6 kV
- Frequency
- 50–60 Hz
- Current limiting class
- 3
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 3
- Pollution degree
- 2
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 4
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -25–70 °C
- Connectable conductor cross section multi-wired
- 1–25 mm²
- Connectable conductor cross section solid-core
- 1–35 mm²
- Explosion-proof
- No
- Flush-mounted installation
- Yes
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250614615078
- SAP 1000008962
- Code 868254
Product Documentation
More from Hager Systemer
Hager Systemer
Hager Systemer cable set for miniature circuit breakers, 3-pole, 150 mm, 3 x 10 mm²
KC350
Hager Systemer
Miniature Circuit Breaker 3X32A C-Curve 10KA
NCN332
Hager Systemer
Hager Systemer Cable Holder for Slotted Trunking BA7
BA7CLIP
Hager Systemer
Hager Systemer 2-Way Socket Gallery White 45x45
WXF472B
Hager Systemer
Miniature Circuit Breaker 4X50A C-Curve 10KA
NCN450
Hager Systemer
Rehab.Frame 1-ROW 16 MOD
1728810
Hager Systemer

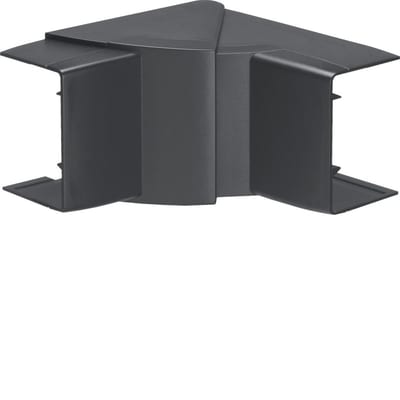

Hager Systemer Internal corner for LFF 40x60 mm trunking, moulded ABS, black RAL 9011 LFF4006049011
Hager Systemer

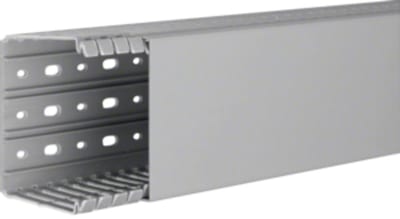

Slotted WIRING DUCT,80X100MM GREY L=2
