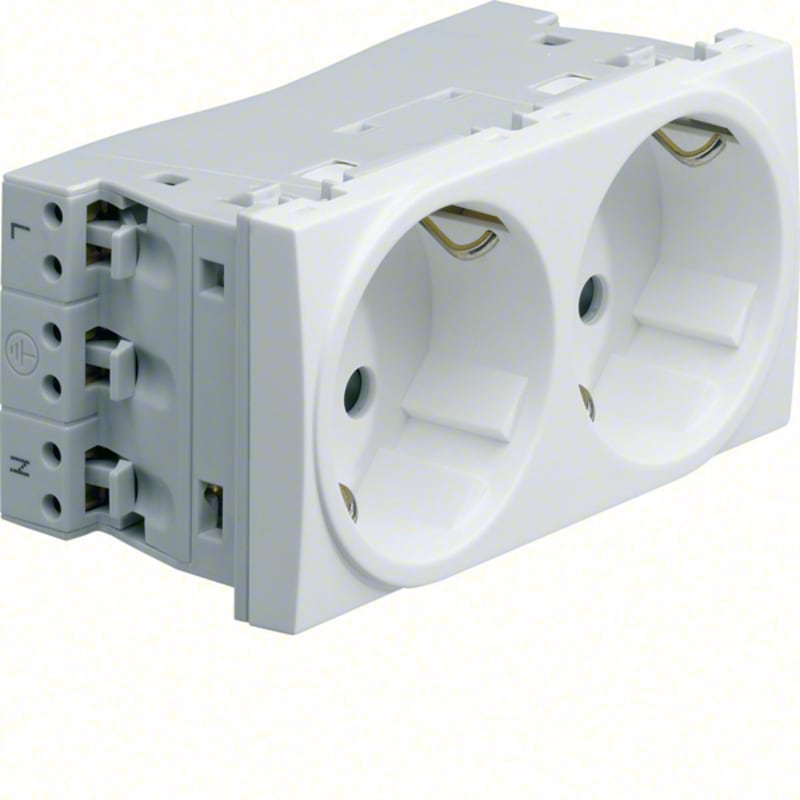

Hager Systemer 2-Way Socket Gallery White 45x45
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer WXF472B is a 2-way socket outlet gallery in white for 45x45 mm wall-duct installation. It carries two 16 A / 250 V positions with enhanced contact protection, push-in clamp terminals and a snap-fit fastening arrangement. The metal chassis is finished glossy in RAL 9016 and rated to IK05 impact resistance and IP21 for indoor use.
Technical Specifications
- Manufacturer part number (MPN)
- WXF472B
- EAN / GTIN
- 3250617130141
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Wall duct
- Colour
- White
- Halogen free
- No
- Number of units
- 2
- Lockable
- No
- With hinged lid
- No
- Connection type
- Push-in clamp
- With signal lamp
- No
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Label space/information surface
- No
- Eject-mechanism
- No
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- Yes
- Material
- Metal
- Type of fastening
- Snap mounting (engagement)
- Imprint/indication
- None
- RAL-number (similar)
- 9016
- Impact strength
- IK05
- Transparent
- No
- Surface finishing
- Glossy
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP21
- Device width
- 90 mm
- Device height
- 42.5 mm
- Device depth
- 45 mm
- With function lighting
- No
- With orientation lighting
- No
- Number of modules (module system)
- 4
- IFTTT support available
- No
- Number of active contacts (flat)
- 2
- Min. depth of built-in installation box
- 50 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Metallic colour
- No
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250617130141
- SAP 1200797923
- Code 83979470
