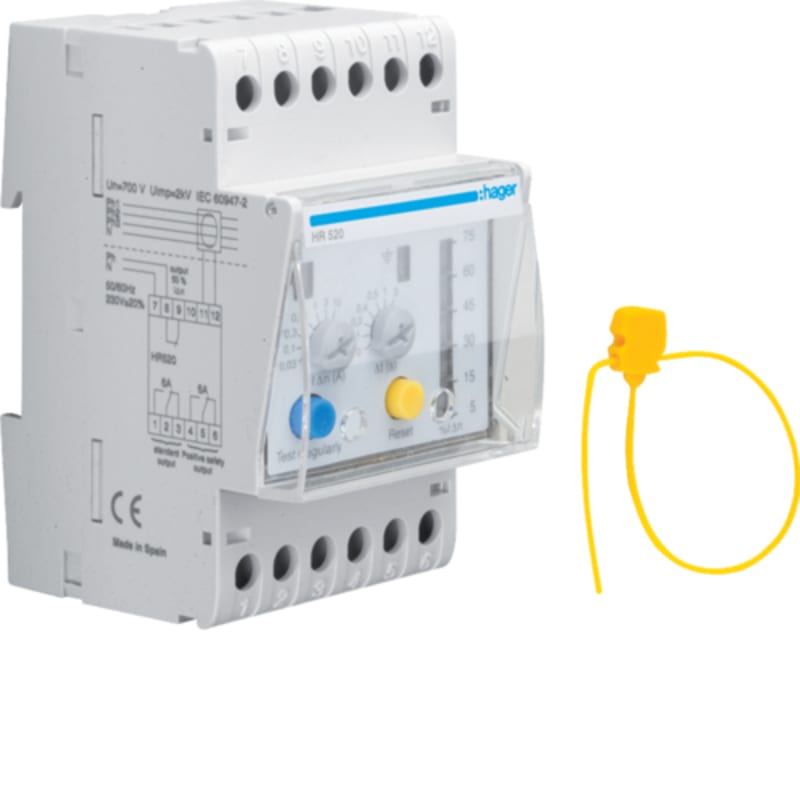

Hager 1660561 Earth Leakage Relay — 2-Channel, Adjustable 30 mA–10 A, 0–3 s Time Delay, 50 % Pre-Alarm

A two-channel adjustable earth leakage relay with a pre-alarm. It measures the residual current — the difference between the current flowing out to a load and the current returning from it, which is only non-zero when some of it is escaping to earth — and signals a separate switching device to open, rather than breaking the circuit itself. Sensitivity is adjustable from 30 mA to 10 A and the tripping delay from 0 to 3 seconds. The distinguishing feature against the single-channel 1660560 is the pre-alarm at 50 % of the set threshold: it reports a circuit that is drifting toward a trip while it is still running, which turns a developing insulation fault into a planned repair instead of an unplanned outage. A 6 A change-over output contact is provided; supply is 230 V AC. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

1660561

Sales unit

pcs

Package quantity

48 pcs

Delay adjustable

Yes

Rated fault current

0.03–10 A

Rated control supply voltage AC 50 Hz

230 V

Rated control supply voltage AC 60 Hz

230 V

Max. rated operation voltage Ue

230 V

Max. power on-delay time

3000 ms

Country of origin

Spain

Device type

Earth leakage relay with pre-alarm

Number of channels

2

Sensitivity range (IΔn)

30 mA – 10 A, adjustable

Tripping delay

0 – 3 s, adjustable

Pre-alarm threshold

50 % of the set residual current

Output contact

Change-over, 6 A

HS Code

8536.49
