kWt meter 3F dir 80A 6M modbus
Pricing
Request a quote
We reply within 24 hours
Product Description

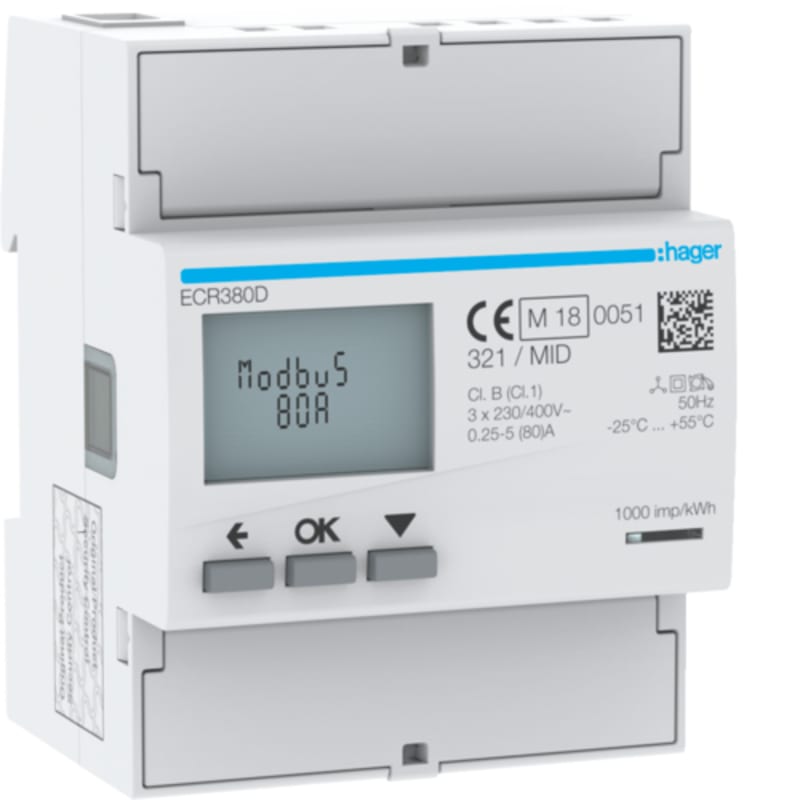

Hager Systemer ECR380D kWh meter 3-phase 80A direct, 230/ 400V AC, 4-module, modbus, MID.
Technical Specifications
- Manufacturer part number (MPN)
- ECR380D
- EAN / GTIN
- 3250612231478
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Rated current
- 80 A
- Mounting method
- DRA (DIN-rail adaptor)
- Width
- 108 mm
- Model
- Direct measurement
- Height
- 92 mm
- Depth
- 60 mm
- Suitable for
- Purchase/supply
- Type of indication
- Digital
- Power consumption
- 0.6 W
- Frequency
- 45–65 Hz
- Max. current (Imax)
- 80 A
- Width in number of modular spacings
- 4
- Number of positions total (counter)
- 9
- Type of meter
- Electronic
- Degree of protection (IP)
- IP20
- Type of interface
- Modbus
- Energy type
- Effective power and reactive power
- Tariff type
- Multi-tariff
- Tariff control
- Internal/external
- Escapement mechanism
- Yes
- Calibrated
- Yes
- Approval
- Measuring Instruments Directive
- Pulse output
- Optical
- Pulse type
- D0
- Pulse rate
- 0–1000 Imp/kWh (kvarh)
- Accuracy class
- B
- Pole type
- Three conductor/four conductor
- Measurement type load profile
- No
- EEC40 signature
- No
- With lock code
- No
- Nominal voltage (Un) N-L
- 92–276 V
- Nominal voltage (Un) L-L
- 160–480 V
- Nominal current (In)
- 80 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 3250612231478
- SAP 1200216269
- Code 82204771
Product Documentation
