Busbar 3 Pole+N 12 Modules
Pricing
Request a quote
We reply within 24 hours
Product Description

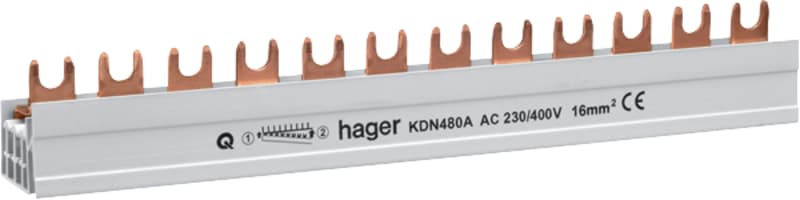

Hager Systemer KDN480A busbar 3P+N. Length 12 modules; 3 poles+N L1-L2-L3-N; cross-section 16 mm² Cu; rated operating current 80A.
Technical Specifications
- Manufacturer part number (MPN)
- KDN480A
- EAN / GTIN
- 3250613741013
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Number of poles
- 3P
- Colour
- Grey
- Insulated
- Yes
- Number of phases
- 4
- Cross section
- 16 mm²
- Rated permanent current Iu
- 80 A
- Length
- 210 mm
- Width in number of modular spacings
- 12
- Rated surge voltage
- 4.5 kV
- Type of electric connection
- Fork
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- Yes
- Suitable for number of devices
- 3
- Max. rated operation voltage Ue
- 400 V
- Module width
- 17.8 mm
- Can be cut to size
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250613741013
- SAP 1000025224
- Code 8225631
Product Documentation
