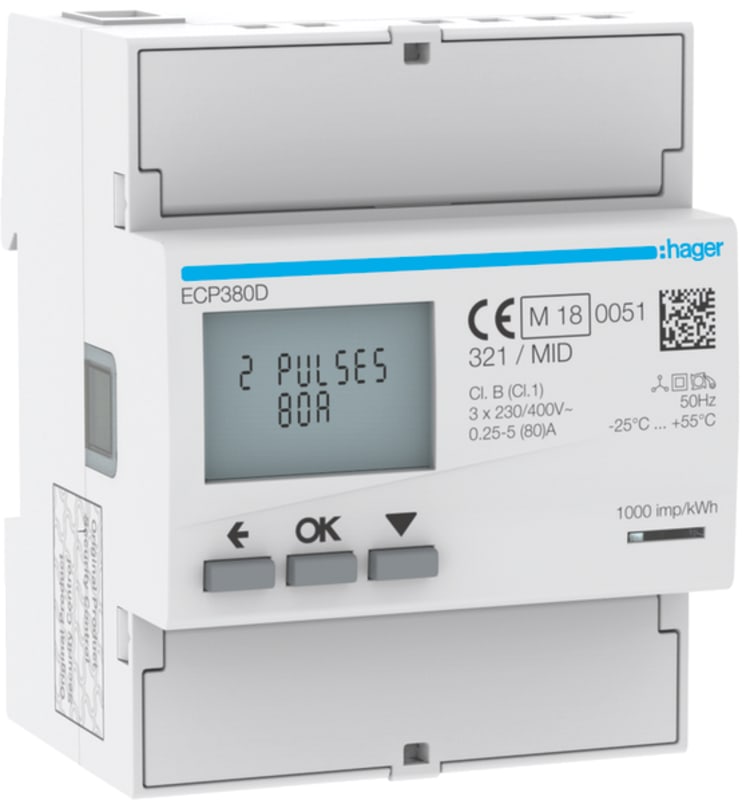

kWh meter 3-F dir 80A 6-M S0
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer ECP380D kWh meter 3-phase/ 3+N 80A direct, 230/ 400V AC, 4-module, S0-pulse, MID.
Technical Specifications
- Manufacturer part number (MPN)
- ECP380D
- EAN / GTIN
- 3250612231416
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Rated current
- 80 A
- Mounting method
- Front mounting
- Width
- 108 mm
- Model
- Direct measurement
- Height
- 92 mm
- Depth
- 60 mm
- Suitable for
- Purchase
- Type of indication
- Digital
- Power consumption
- 0.6 W
- Frequency
- -50–60 Hz
- Max. current (Imax)
- 80 A
- Width in number of modular spacings
- 6
- Number of positions total (counter)
- 6
- Type of meter
- Electronic
- Degree of protection (IP)
- IP34
- Type of interface
- LON bus
- Energy type
- Effective power
- Tariff type
- Two-tariff
- Tariff control
- Internal/external
- Escapement mechanism
- Yes
- Calibrated
- Yes
- Approval
- Measuring Instruments Directive
- Pulse output
- Electrical
- Pulse type
- S0
- Pulse rate
- 0–1000 Imp/kWh (kvarh)
- Accuracy class
- A
- Pole type
- Three conductor/four conductor
- Measurement type load profile
- Yes
- EEC40 signature
- Yes
- With lock code
- Yes
- Nominal voltage (Un) N-L
- -200–240 V
- Nominal voltage (Un) L-L
- -200–440 V
- Nominal current (In)
- 80 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 3250612231416
- SAP 1200216263
- Code 82204751
Product Documentation
