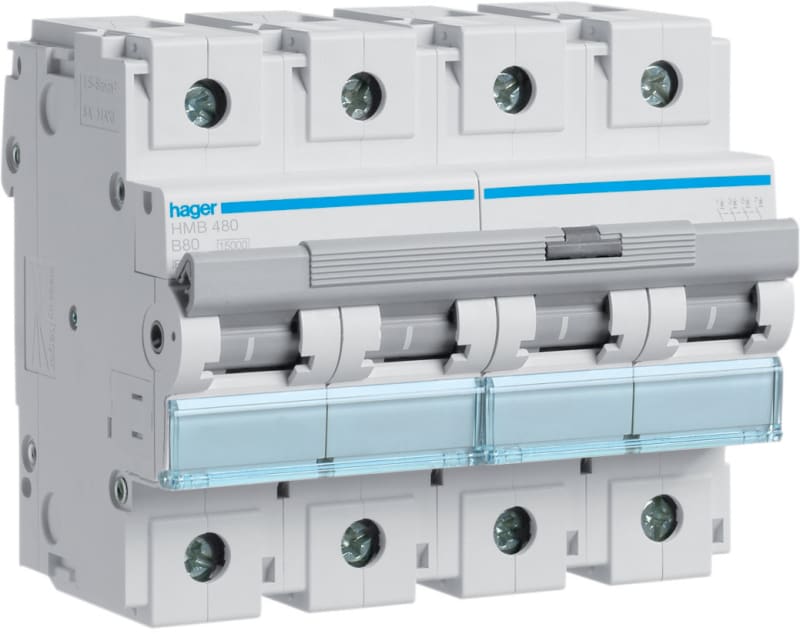

Hager Systemer MCB 4P 15KA B-80A 6M HMB480

Hager Systemer HMB480 MOD CIRCUIT BREAKER 4x80A B-Curve 15kA 4,5M.

Manufacturer part number (MPN)

HMB480

EAN / GTIN

3250613230104

HS code

8536.90

Sales unit

pcs

Package quantity

12 pcs

Breaking capacity

15 kA

Rated current IN

80 A

Rated current -15°C

109 A

Rated current -10°C

106 A

Rated current -5°C

102 A

Rated current at 0°C

99.20 A

Rated current 5°C

96 A

Rated current 10°C

92.80 A

Rated current 15°C

89.60 A

Rated current at 20°C

86.40 A

Rated current 25°C

83.20 A

Rated current 35°C

77.60 A

Rated current at 40°C

75.10 A

Rated current at 45°C

72.60 A

Rated current at 50°C

70 A

Rated current 55°C

67.20 A

Rated current 60°C

64.30 A

Type of pole

4P

Curve

B

Number of modules

6

Nominal tightening torque top terminal

3.60 - 3.60 Nm

Nominal tightening torque

3.5 - 5.0 Nm

Type of bottom connection for modular devices

Screw terminal

360° mounting position possible

Yes

Rated operational voltage Ue

415 - 415 V

Type voltage supply

AC

Rated insulation voltage Ui

500 V

Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input with screws, for flexible conductors

1 - 50 mm²

Cross-section of input with screws, for solid conductors

1 - 70 mm²

Cross-section flexible conductor

50 mm²

Cross-section rigid conductor

70 mm²

Ingress Protection (IP) class

IP20

Grid distance

110 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

3

Class of energy limitation I²t

3

Air humidity protection

For all climates

Operating temperature

-25 - 70 °C

Power dissipation at IN

25.71 W

Top connection alignment for modular devices

Aligned terminal

Height

90 mm

Width

106 mm

Depth

70 mm

HS Code

8536.90

• EAN 3250613230104
• SAP 1000286167
• Code 836488
