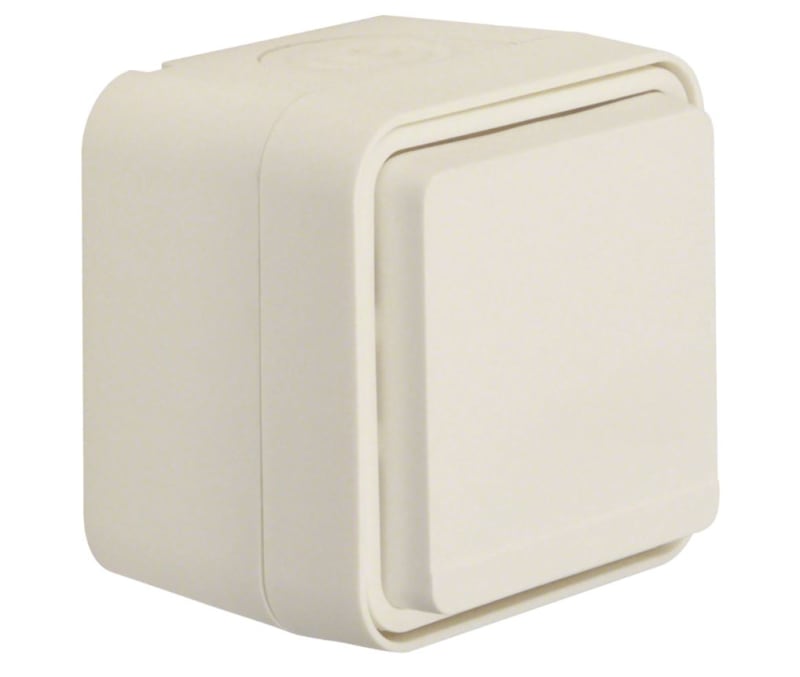

Single socket with cover IP55 white
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer 47633502 Single socket with klapplokk IP55 white colour.
Technical Specifications
- Manufacturer part number (MPN)
- 47633502
- EAN / GTIN
- 4011334395065
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 36 pcs
- IP rating
- IP55
- Nominal current
- 16 A
- Nominal voltage
- 230 V
- Mounting method
- Surface mounted
- Colour
- White
- Model
- Protective contact CEE 7/3 / CEE 7/4 (type F)
- Halogen free
- Yes
- Cover
- Complete housing
- Number of units
- 1
- Lockable
- Yes
- With hinged lid
- Yes
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- With signal lamp
- No
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Protective contact
- Yes
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Mounting with claw and screw
- Imprint/indication
- None
- RAL-number (similar)
- 9010
- Impact strength
- IK05
- Transparent
- No
- Surface finishing
- Matt
- With miniature fuse
- No
- With loop through function
- No
- Suitable for degree of protection (IP)
- IP55
- Phase pickup
- None
- Device width
- 76 mm
- Device height
- 76 mm
- Device depth
- 63 mm
- With function lighting
- No
- With orientation lighting
- No
- With built-in USB power supply
- No
- IFTTT support available
- No
- Number of active contacts (round)
- 2
- Protective earth pin round
- No
- Min. depth of built-in installation box
- 0 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Metallic colour
- No
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011334395065
- SAP 1000631609
- Code 8306812
Product Documentation
More from Hager Systemer
Hager Systemer
Floor Box VEE09, stainless steel
VEE0912E
Hager Systemer
Mini Trunking ATA 20X50MM 2M PVC White
ATA205019016B
Hager Systemer
Channel 60X151MM halogen-free white 2M
LFH6015009016
Hager Systemer
Cabinet,univers,IP55,kl.II,1100X550X275MM (FR72S)
Hager Systemer
Quick-connect pe-terminal 17X1,5-4 + 5X25²
KN22E
Hager Systemer
Hager PACPOST 80 Double-Sided Service Pillar 650 mm White
DAP2806509016
Hager Systemer
Channel LF 60X110MM L=2M White PVC
LF6011009016
Hager Systemer
Floor Box VQ12, 12mm cover black (VQ12129005)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 47633502?
- 47633502 can be ordered from cballast.com as a Hager Systemer catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Hager Systemer product?
- The manufacturer part number is 47633502.
- What is the HS code for 47633502?
- The customs tariff (HS) code for 47633502 is 8536.90.
- Who manufactures 47633502?
- 47633502 is a Hager Systemer product in the Electrical Components range.
- Is a datasheet available for 47633502?
- Yes — the 47633502 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 47633502?
- The minimum order quantity is 1.
- Is 47633502 available?
- Yes — 47633502 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
