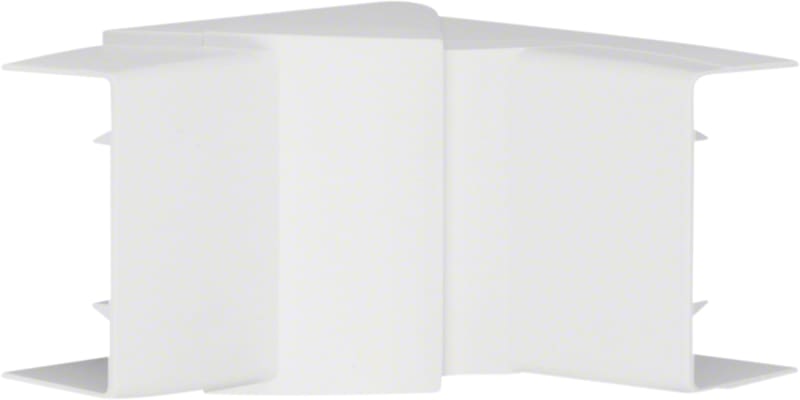

Hager Systemer Internal corner for LFF 30x60 mm trunking, moulded ABS, traffic white RAL 9016, adjustable 83...97 deg LFF3006049016

Moulded internal corner hood for Hager tehalit LFF trunking in the 30x60 mm size (fits LFF 30x60). Part dimensions 30 mm x 57 mm, measurement a 105 mm. Covers a wall angle of 83 to 97 deg, with an overlapping edge that hides the cut ends of the channel. Acrylonitrile-Butadiene-Styrene (ABS). Traffic white, RAL 9016, untreated. Impact resistance IK07. Operating temperature -5 to 60 °C. Halogen free. Click mounting. Not rated for circuit or functional integrity to DIN 4102-12. Supplied in packs of 5 pcs. Country of origin Germany. HS code 3925.90. Hager reference: SAP 1200495750, code 82617314.

Manufacturer part number (MPN)

LFF3006049016

EAN / GTIN

4012740013086

Sales unit

pcs

Package quantity

5 pcs

Type of accessory

Moulded

Angle range

83 - 97

Height

30 mm

Width

57 mm

Measurement a

105 mm

Material

Acrylonitrile-Butadiene-Styrene (ABS)

Treatment

Untreated

Colour

Traffic white

RAL code

9016

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes

Mounting type

Click mounting

Related Series

LFF 30x60

Model

Moulded hood

Halogen free

Yes

RAL-number

9016

Surface protection

Untreated

Type of fastening

Snap on

Impact strength

IK07

With protective foil

No

Angle

83–97 °

Suitable for circuit integrity

No

Anti-bacterial treatment

No

Country of origin

Germany

HS Code

3925.90

• EAN 4012740013086
• SAP 1200495750
• Code 82617314
