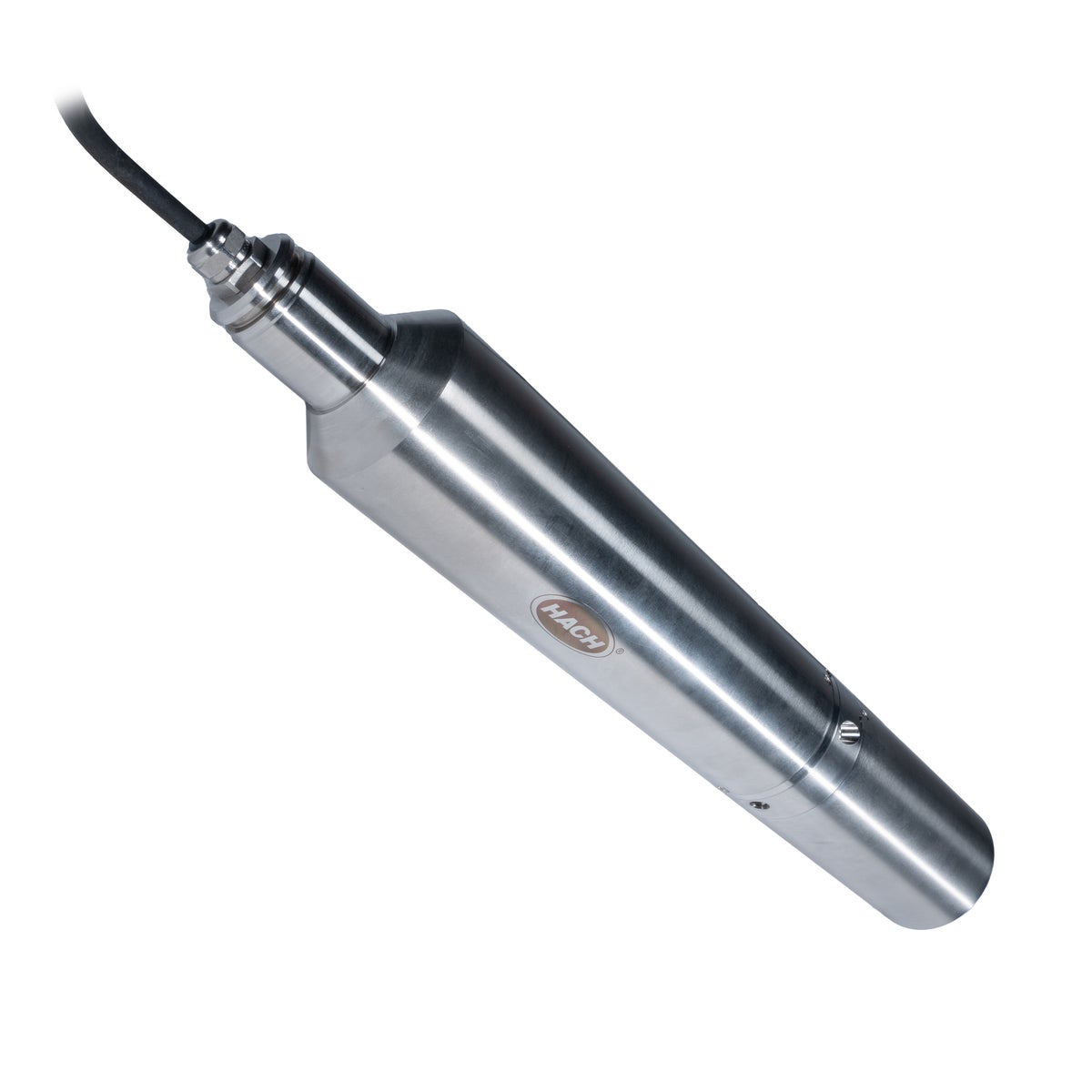

NT3100SC UV Nitrate Sensor 1mm — 0.1 - 90 mg/L NO3-N

Hach NT3100SC UV Nitrate Sensor 1mm — 0.1 - 90 mg/L NO3-N. Reference part number LXV448.99.11001.

Accuracy

± 5% of reading ± 0.1 mg/L NO₃-N

Altitude

2000 m (6562 ft) maximum

Ambient Temperature

2 - 40 °C (36 - 100 °F), 95% relative humidity, non-condensing

Cable Length

10 m (33 ft); Extension cables are available: 5, 10, 15, 20, 30 and 50 m. The maximum cable length is 60 m (190 ft).

Certifications

CE, CMIM, UKCA, FCC, and ISED approved

Controller Compatibility

SC4500, SC1000, SC200

Dimensions

70 x 402 mm (3 x 15.8 inches) approximately

Indoor/Outdoor

Outdoor

IP Rating

IP68

Lower Limit of Detection (LOD)

0.1 mg/L NO₃-N

Measurement Method

UV Absorption, sludge compensated, 2-channel beam path

Measuring Interval

15, 30 seconds, 1, 5, 10, 30 minutes

Measuring Principle

UV absorption measurement, reagent-free

Model

NT3100sc

Over voltage category

II

Parameter

Nitrate

Path Length

1 mm

Pollution Degree

2

Power Consumption

9

Pressure Range

Sensor pressure limit: 0.5 bar

Process Connection

Immersion directly in media; Bypass with Flow Through Unit; Sedimenter

Range

0.1 - 90 mg/L NO₃-N

Resolution

0.01 - 999.9

Response Time

T100: 1 minute

Sample Temperature

2 - 40 °C (36 - 100 °F)

Signal Average Time

1 to 12 measurements

Sludge Compensation

Yes

Units

mg/L, ppm

Warranty

12 months

Weight

4.8 kg (10.58 lb) with 10 m cable

What's included

Sensor with cable set, set of wipers, user manual

HS Code

9027.89
