Product Description

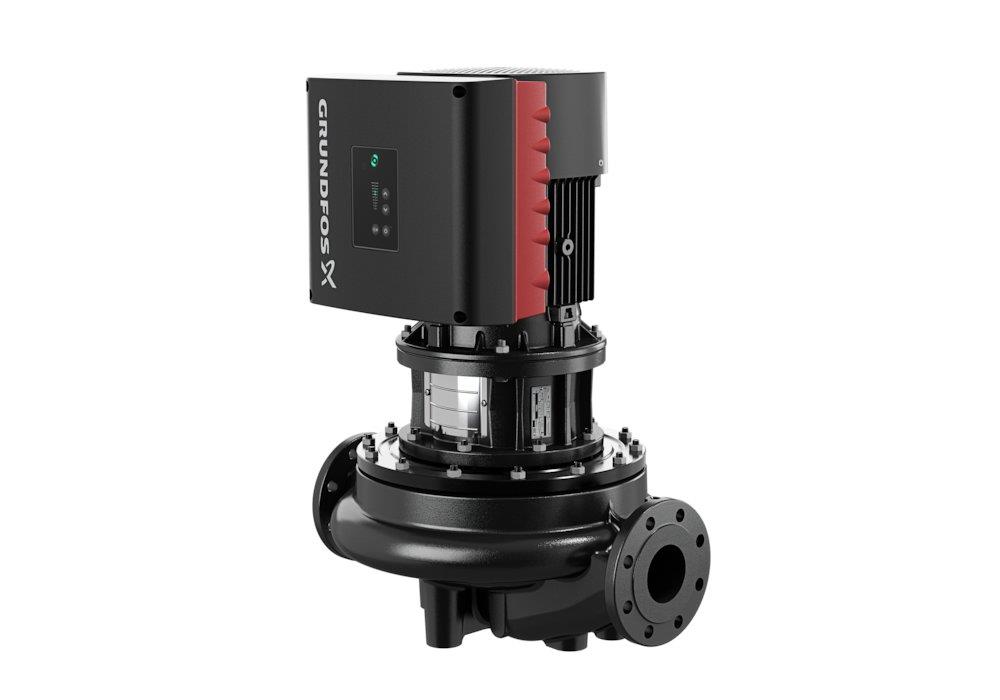

Grundfos TPE Circulation pump 40-530/2. Circulation pumps for heating and cooling (Plumbing / Heat / Pumps for heating and domestic water). Principal data: dn dimension 40, installation dimension 440 mm, lifting height max 53 m. Supplied under manufacturer part number 99113933, HS code 9028.30, country of origin Denmark.
Technical Specifications
- Product type
- Circulation pumps for heating and cooling
- Product group
- Heat
- DN dimension
- 40
- Installation dimension
- 440 mm
- Lifting height max
- 53 m
- Shaft sealing type
- BQQE
- Power
- 7.5 kW
- Housing material
- Cast iron
- Application range
- Heating/cooling
- Media temperature min
- -25 °C
- Media temperature max
- 120 °C
- Ambient temperature max
- 50 °C
- Leakage class
- IP55
- Supply voltage
- 3 x 380-500 V AC
- Working pressure max
- 16 bar
- Flow max
- 37.8 m³/h
- Color
- Black/red
- Depth
- 721.5 mm
- Weight
- 93 kg
- REACH SVHC substance above 0.1%
- Lead, Cyclopentamethicone, DME, Decamethylcyclopentasiloxane, Lead titanium zirconium oxide, Lead-monoxide, Octamethylcyclotetrasiloxane, Potassium Perfluorobutanesulfo, TNPP, Tetrabrombisphenol A
- Carbon footprint (EPD)
- 776.0897 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 90283090
- HS code
- 9028.30
- Manufacturer part number
- 99113933
- VVS number
- 382062530
Standards & Compliance
- HS Code
- 9028.30
Cross References
- MPN 99113933
- VVS 382062530
