Product Description

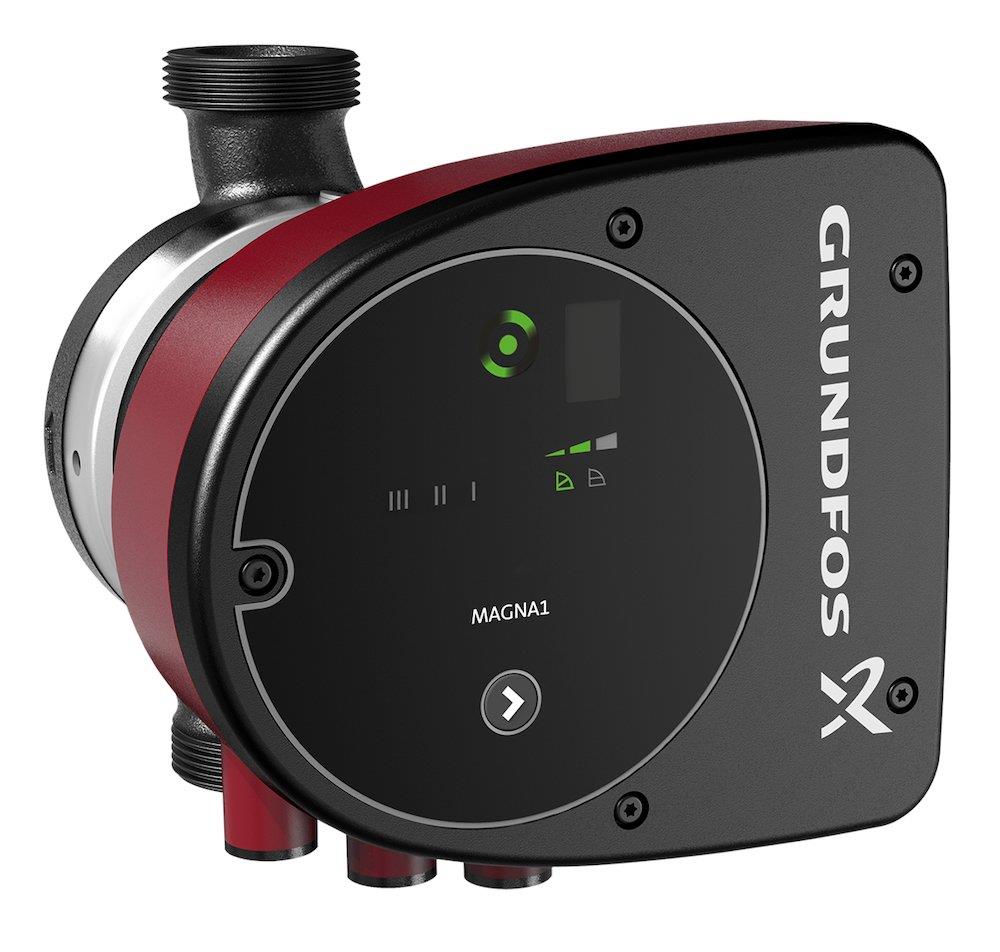

Grundfos Magna1 FIRE Circulation pump 25-40. Circulation pumps for heating and cooling (Plumbing / Heat / Pumps for heating and domestic water). Principal data: connection thread 1 1/2", lifting height max 4 m, installation dimension 180 mm. Supplied under manufacturer part number 99224453, EAN 5712608999680, HS code 8413.70, country of origin Germany.
Technical Specifications
- Product type
- Circulation pumps for heating and cooling
- Product group
- Heat
- Connection thread
- 1 1/2"
- Lifting height max
- 4 m
- Installation dimension
- 180 mm
- Housing material
- Cast iron
- Application range
- Heating/cooling
- Media temperature min
- -10 °C
- Media temperature max
- 110 °C
- Ambient temperature max
- 60 °C
- Leakage class
- X4D
- Supply voltage
- 230 V AC
- Energy efficiency index (EEI)
- 0.20 EEI
- Working pressure max
- 16 bar
- Depth
- 196 mm
- Height
- 180 mm
- Shaft sealing type
- Without shaft seal
- Color
- Black/red
- Weight
- 5.14 kg
- Carbon footprint (EPD)
- 35.3016 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84137030
- HS code
- 8413.70
- Manufacturer part number
- 99224453
- GTIN (EAN)
- 5712608999680
Standards & Compliance
- HS Code
- 8413.70
Cross References
- EAN 5712608999680
- MPN 99224453
