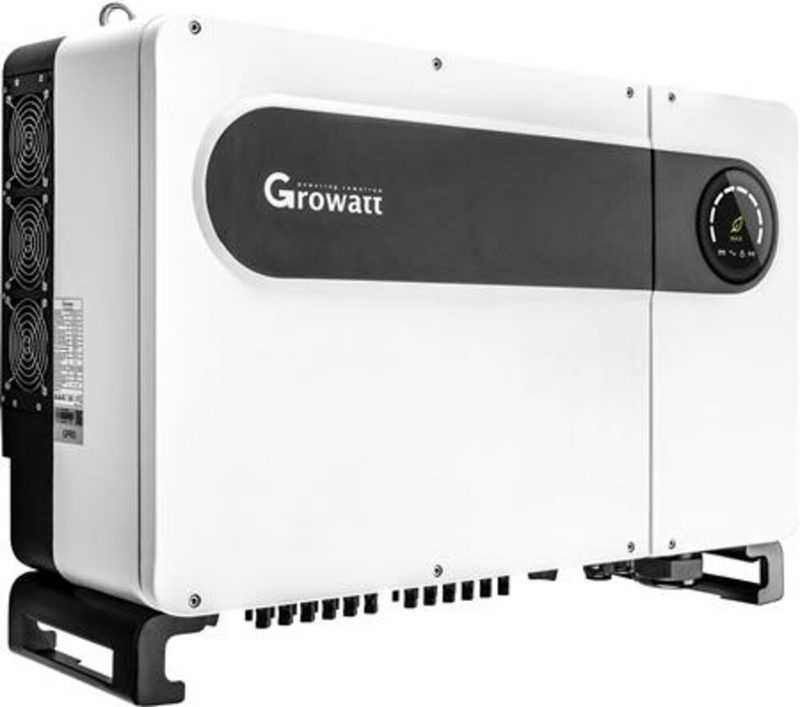

Growatt MAX 120KTL3-X LV three-phase string inverter, 120 kW
Pricing
Request a quote
We reply within 24 hours
Product Description
Growatt MAX 120KTL3-X LV three-phase string inverter, 120 kW nominal AC output. Technical data per the attached Growatt OEM datasheet; see specification lines below.
Technical Specifications
- Rated AC power
- 120 kW.
- Topology
- three-phase transformerless string inverter; 10 MPP trackers, fuse-free design.
- Max. DC voltage 1100 V; MPPT operating range 180-1000 V; nominal DC voltage 600 V.
- AC connection
- 220/380 V, 230/400 V (340-440 V); adjustable power factor +/-0.8.
- Max. efficiency up to 98.8%. Cooling
- smart cooling; enclosure IP66; dimensions 970 x 640 x 345 mm.
- Compliance
- CE, UKCA, IEC62116/61727, Poland Type A/B, CEI0-16, CEI0-21, C10/C11, EN50549-1, EN50549-2, N4105.
- Warranty
- 5 years (10 years optional).
- Manufacturer part number (MPN)
- MAX 120KTL3-X LV
- Sales unit
- pcs
- Lifecycle status
- Phased out
Standards & Compliance
- IP Rating
- IP66
- HS Code
- 8504.40
Cross References
- SAP 1200548271
- Code 82881590
Product Documentation
More from Growatt
Growatt
Growatt SEM 300kW,contains Shinemaster and CT-terminals
SEM 300KW
Growatt
Growatt MAX 100KTL3-X2 LV three-phase string inverter, 100 kW
Growatt
Growatt Current transformer 600/5A
Growatt CT (600/5A)
Growatt
Growatt Current transformer 2000/5A
Growatt CT (2000/5A)
Growatt
1-Phase meter with CT, TN/IT
SPM-CT-E
Growatt
Growatt SYN 100-XH-30 off-grid / backup switching box for three-phase MID-XH hybrid inverter
Growatt

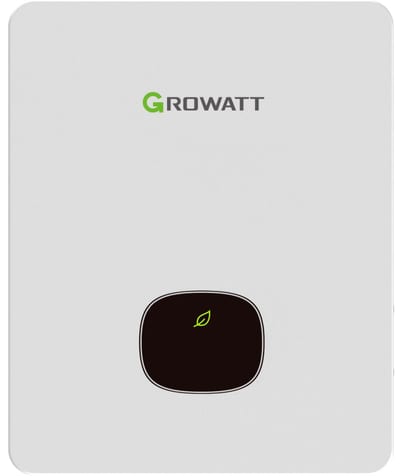

Growatt Off grid drift of enfas inverter MIN
SYN-50-XH-10
Growatt

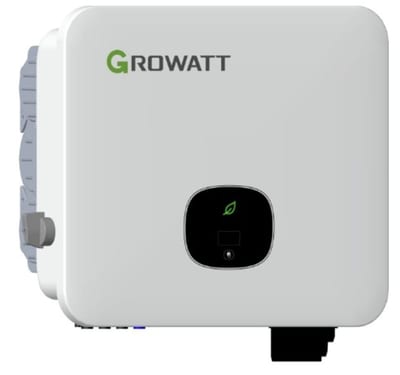

Growatt MOD 6KTL3-HU
