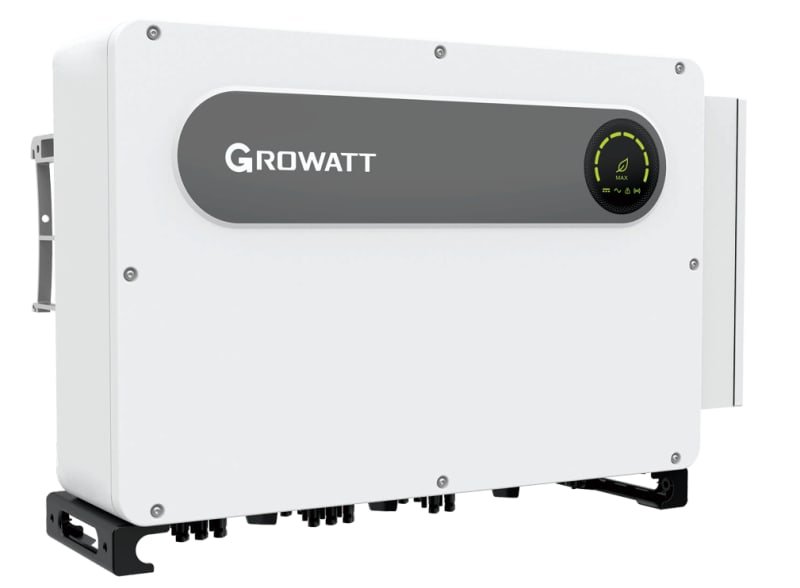

Growatt MAX 100KTL3-X2 LV three-phase string inverter, 100 kW
Pricing
Request a quote
We reply within 24 hours
Product Description
Growatt MAX 100KTL3-X2 LV three-phase string inverter, 100 kW nominal AC output. Technical data per the attached Growatt OEM datasheet; see specification lines below.
Technical Specifications
- Rated AC power
- 100000 W; max. AC apparent power: 110000 VA; max. output current: 158.8 A @400V.
- Topology
- three-phase string inverter; 8 MPP trackers, fuse-free design; max. string current 22.5 A; smart I/V scan and diagnosis.
- Max. DC voltage 1100 V; start-up voltage 195 V.
- AC connection
- 220/380 V, 230/400 V (340-440 V); 50/60 Hz (45-55/55-65 Hz).
- Max. efficiency up to 98.8%. Cooling
- smart air cooling; operating temperature -30 to +60 C; enclosure IP66.
- Warranty
- 5 years (10 years optional).
- Manufacturer part number (MPN)
- MAX 100KTL3-X2 LV
- Sales unit
- pcs
Standards & Compliance
- Temperature Range
- -30 to +60 C
- IP Rating
- IP66
- HS Code
- 8504.40
Cross References
- SAP 1200998148
- Code 84343077
Product Documentation
