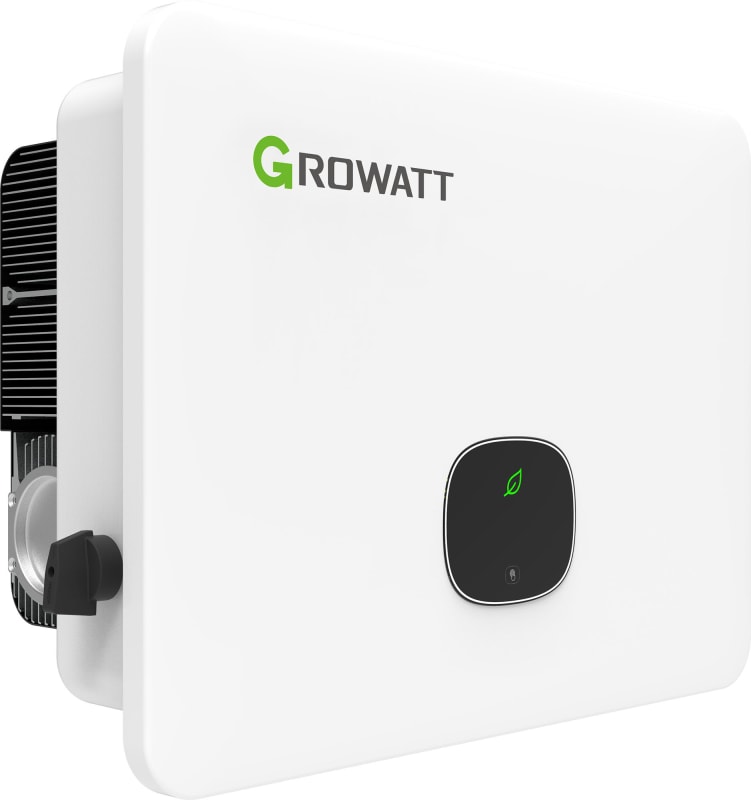

Growatt MID 20KTL3-XH three-phase hybrid inverter 20 kW
Pricing
Request a quote
We reply within 24 hours
Product Description
Growatt MID 20KTL3-XH Three-phase hybrid inverter, 20 kW, dual MPPT, for TN networks.
Technical Specifications
- Growatt MID 20KTL3-XH three-phase hybrid inverter. Rated AC output
- 20 kW. DC/AC ratio up to 2. Max. efficiency 98.5%. Topology: three-phase, transformerless, smart air cooling. Max. DC voltage: 1100 V. MPPT voltage range: 200-1000 V (start 160 V). Grid connection: 220/380 V, 230/400 V (340-440 V), 50/60 Hz; THDi <3%. Battery: Growatt APX HV Battery System 5-60 kWh, 600-980 V, 25 A. Protection: Type II SPD on DC and AC side, AFCI, DC switch, anti-islanding, insulation resistance monitoring. Ingress protection IP66. Operating temperature -25 to +60 C, max. altitude 4000 m, nighttime consumption <5.5 W. Interfaces: USB / RS485 / WiFi / GPRS / LAN / RF; display OLED+LED / WiFi+APP. Certifications: CE, VDE0126, EN50549-1, C10/C11, IEC62116, IEC61727, IEC60068, IEC61683, CEI0-21, N4105, G98/G99, G100, AS4777, UNE217001. Warranty 5 / 10 years.
- Manufacturer part number (MPN)
- MID 20KTL3-XH
- EAN / GTIN
- 6975609725958
- Sales unit
- pcs
- Power
- 20 kW
- Max. input current
- 32 A
- Nominal output power AC
- 20000 W
- Number of independent MPPT inputs
- 2
- Wi-Fi
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 6975609725958
- SAP 1200703165
- Code 83605726
Product Documentation
