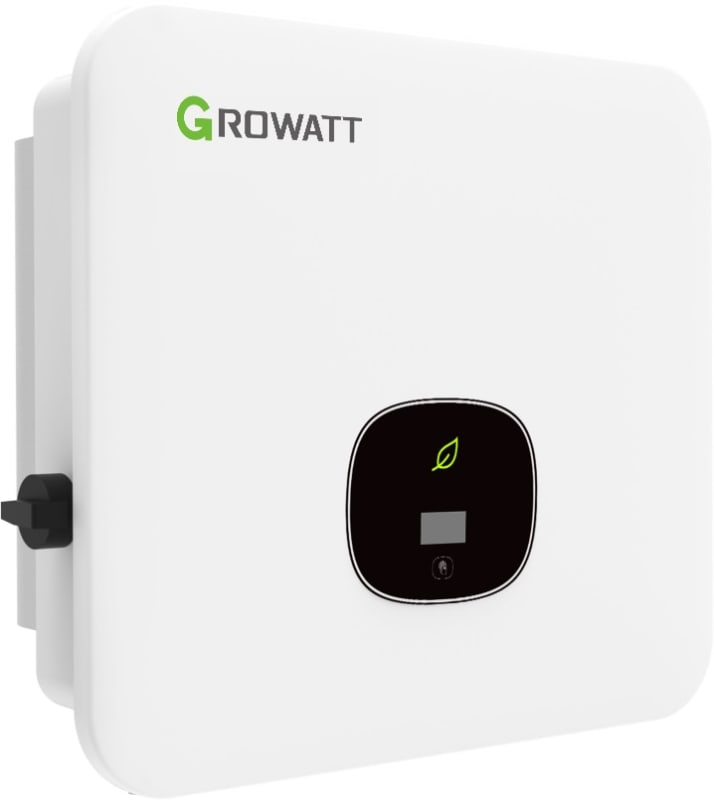

Growatt MOD 6000TL3-XH(BP) three-phase hybrid (backup) inverter, 6 kW
Pricing
Request a quote
We reply within 24 hours
Product Description
Growatt MOD 6000TL3-XH(BP) three-phase hybrid (backup) inverter, 6 kW nominal AC output. Technical data per the attached Growatt OEM datasheet; see specification lines below.
Technical Specifications
- Rated AC power
- 6000 W; max. AC apparent power: 6600 VA; max. output current: 10.0 A; max. efficiency 98.3% (European 97.5%); weight 12.5 kg.
- Topology
- three-phase transformerless, battery-ready hybrid with integrated backup (UPS) function; dual MPP tracker.
- Max. PV input voltage
- 1100 V; MPPT operating range: 140-1000 V; start-up voltage: 160 V; nominal DC voltage: 600 V.
- AC connection
- 3W+N+PE; nominal 220/380 V, 230/400 V (340-440 V); 50/60 Hz; THDi <3%.
- Battery compatibility
- Growatt APX HV Battery System 5-30 kWh.
- Protection
- DC reverse-polarity, DC switch, AC/DC surge Type II/Type II, residual-current monitoring, anti-islanding; AFCI optional.
- Enclosure
- IP66; operating temperature -25 to +60 C; natural convection cooling.
- Compliance
- CE, VDE0126, EN50549, C10/C11, IEC62116, IEC61727, CEI0-21, N4105, G98/G99, G100, AS4777, UNE217001.
- Warranty
- 5 years (10 years optional).
- Manufacturer part number (MPN)
- MOD 6000TL3-XH(BP)
- Sales unit
- pcs
- Lifecycle status
- Phased out
- Max. input current
- 32 A
- Nominal output power AC
- 6000 W
- Number of independent MPPT inputs
- 2
- Wi-Fi
- No
- Country of origin
- China
Standards & Compliance
- Temperature Range
- -25 to +60 C
- IP Rating
- IP66
- HS Code
- 8504.40
