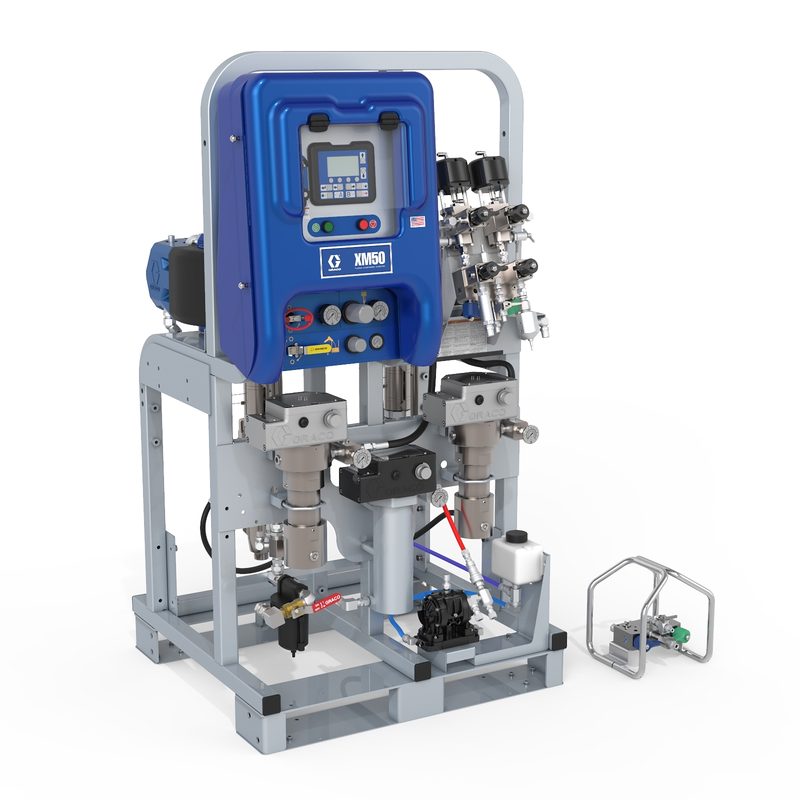

Graco XM50, 240V, Alternator Power, EX Viscon HF Heaters, No Junction Box, No Feed, Remote Manifold, Water Heated Hose Control
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco XM5P0W XM50, 240V, Alternator Power, EX Viscon HF Heaters, No Junction Box, No Feed, Remote Manifold, Water Heated Hose Control, part number XM5P0W. Plural Component Sprayer (XM50). Mix ratio 1:1-10:1. Maximum working pressure 5200 psi (358 bar); maximum fluid flow 3 gpm (11.4 lpm). All values read from the Graco product page (XM5P0W on graco.com).
Technical Specifications
- Brand
- Graco Model: XM50 Part number: XM5P0W Maximum working pressure: 5200 psi (358 bar) Maximum flow rate: 3 gpm (11.4 lpm) Type: Plural Component Sprayer minimum mix ratio: 1:1 Maximum mix ratio: 10:1 Mix accuracy: 5% Tank capacity: No Tank Power source: Alternator Air inlet size: 3/4 in. Female NPT Sound pressure level: 84.8 at 70psi (0.48 MPa, 4.8 bar) dB(A) Voltage: 240 V
Standards & Compliance
- Pressure Rating
- 5200 psi (358 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
XM is Graco's plural-component (two-component) proportioning spray line for protective coatings and materials. The 1:1-10:1 mix ratio range and the wetted-material set determine which coatings this configuration handles. Confirm the electrical supply (phase/voltage), hopper/feed configuration and gun/tip suit the coating before ordering.
Product Documentation
More from Graco
Graco
Graco XM50 System, 240V, Alternator Power, Explosion Proof Viscon HF Heaters, No Junction Box, Hoppers, Remote Manifold
XM5P10
Graco
Graco XM50, 240V, Alternator Power, EX Viscon HF Heaters, No Junction Box, Hoppers, Remote Manifold, Water Heated Hose Control
XM5P1W
Graco
Graco XM50, 240V, Alternator Power, EX Viscon HF Heaters, No Junction Box, Heated Tanks, Agitators, Feed Pumps, Remote Manifold
XM5P20
Graco
Graco XM50, 480V, Alternator Power, EX Viscon HF Heaters, Explosion Proof Junction Box, Heated Tanks, Agitators, Feed Pumps, Remote
XM5K20
Graco
Graco XM70 Sprayer, Remote Manifold, Wall Power, Heater, 20gal (75L) Hoppers, Inlet/Mount/Agitator Kits
XM8C21
Graco
Graco XM70 Sprayer, Remote Manifold, Wall Power, Heater, 20gal (75L)/7gal (26.5L) Hoppers, Mount/Agitator/5:1/Circulation Kits
XM8C19
Graco
Graco XM70 Sprayer, Remote Manifold, Wall Power, 20gal (75L) Hoppers, Heat/Inlet/Mount/Agitator Kits
XM8A24
Graco
Graco XM70 HL Sprayer, Remote Manifold, IS/Alternator, drum Kit with Dual 5:1 and Agitator
XM8D31
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XM5P0W?
- XM5P0W can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is XM5P0W.
- What is the HS code for XM5P0W?
- The customs tariff (HS) code for XM5P0W is 8424.20.
- Who manufactures XM5P0W?
- XM5P0W is a Graco product in the Tools & Workshop Consumables range.
- Is a datasheet available for XM5P0W?
- Yes — the XM5P0W datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XM5P0W?
- The minimum order quantity is 1.
- Is XM5P0W available?
- Yes — XM5P0W is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
