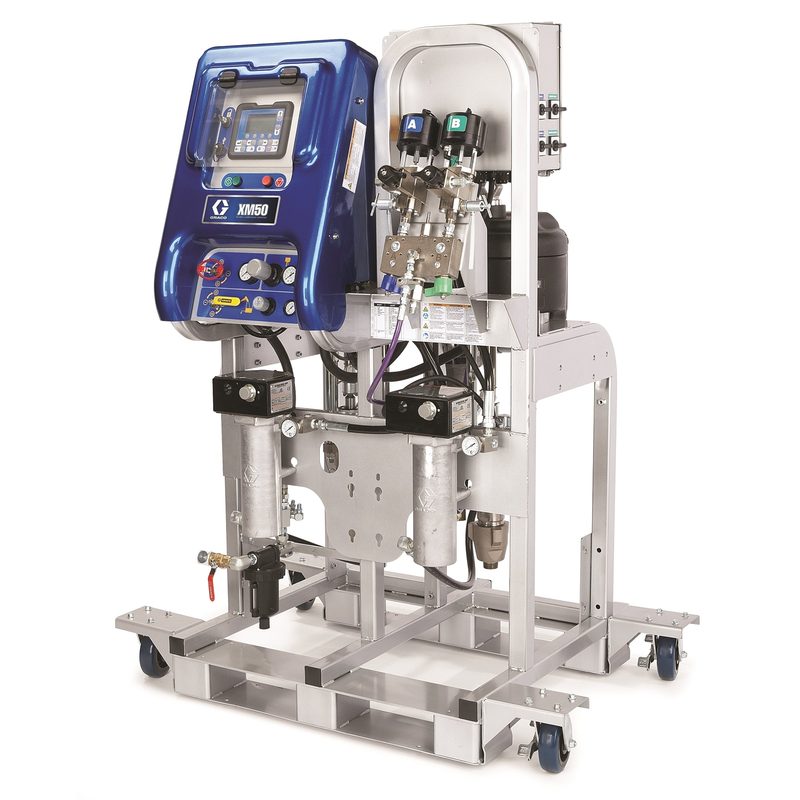

Graco XM1B00 XM50 Sprayer, Pump Filter, Wall Power, Heater, Junction Box
Graco · Tools & Workshop Consumables · Spray Packages
Graco XM1B00 XM50 Sprayer, Pump Filter, Wall Power, Heater, Junction Box, part number XM1B00. Plural Component (XM50). Mix ratio 1:1-10:1. Maximum working pressure 5200 psi (358 bar); maximum fluid flow 3 gpm (11.36 lpm). Compatible material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents. Wetted parts: Aluminum, Stainless Steel, Carbide, UHMWPE, PTFE, Nylon, Carbon Steel, Alloy Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, Polyethylene, Leather, Polypropylene. Includes: Whip Hose, Static Mixer, XTR Spray Gun. All values read from the Graco product page (XM1B00 on graco.com).
Specifications
- Part number
- XM1B00
- HS code
- 8424.20
- Material
- Aluminum, Stainless Steel, Carbide, UHMWPE, PTFE, Nylon, Carbon Steel, Alloy Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, Polyethylene, Leather, Polypropylene
- Pressure rating
- 5200 psi (358 bar) max working
Compatibility
XM is Graco's plural-component (two-component) proportioning spray line for protective coatings and materials. The 1:1-10:1 mix ratio range and compatibility with protective coating, primer, epoxy, polyurethane, two-component coating, solvents determine which coatings this configuration handles. This configuration includes: Whip Hose, Static Mixer, XTR Spray Gun. Confirm the electrical supply (phase/voltage), hopper/feed configuration and gun/tip suit the coating before ordering.
