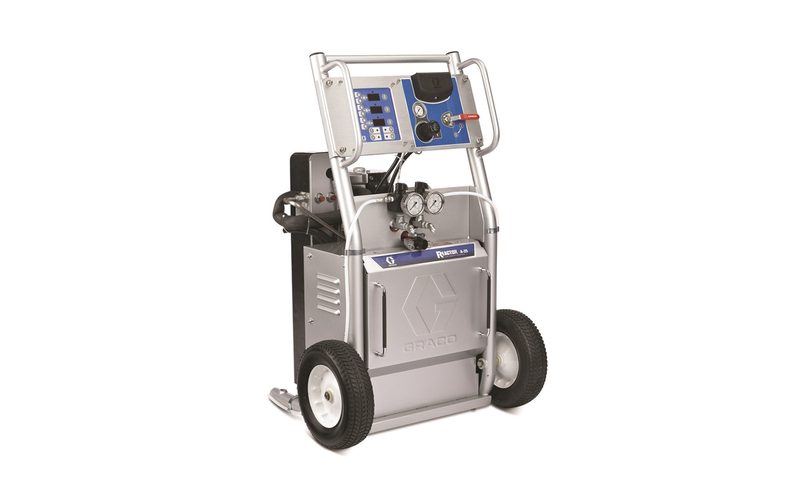

Graco Reactor A25 Proportioner Package, Probler P2 Gun, 230/400 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco P22572 Reactor A25 Proportioner Package, Probler P2 Gun, 230/400 V, part number P22572. Reactor plural-component proportioner, 1:1 mix ratio. Maximum flow rate 25 lb/min. Maximum fluid temperature 190 °F. Wetted parts: Carbon Steel, Stainless Steel, Chrome, Aluminum, Fluoroelastomer, PTFE, Nylon. Includes: Proportioner, Probler P2 Gun, Heated Hose. All values read from the Graco product page (P22572 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- Reactor
- Part number
- P22572
- Type
- Proportioner Package
- Product type
- Plural Component
- Application
- Spray Foam
- Material application
- Polyurethane Foam
- Compatible material
- Plural-Component
- Component type
- Two Component
- Pressure type
- Low Pressure
- Applicator type
- Manual
- Power source
- Air
- Maximum mix ratio
- 1:1
- Maximum flow rate
- 25 lb/min (11.34 kg/min)
- Maximum fluid temperature
- 190 °F (88 °C)
- Voltage
- 230, 400 V
- Amperage
- 18.5 @ 380 V ac (3-Phase WYE), 32 @ 230 V ac (3-Phase Delta), 40 @ 230 V ac (1-Phase) A
- Frequency
- 50/60 Hz
- Phase
- 1, 3
- Power rating
- 9 kW (12.07 HP)
- Gun type
- Probler P2
- Hose length
- 50, 10 ft (15.2, 3 m)
- Air inlet size
- 1/2 in NPT
- Sound pressure level
- 70.2 dB(A)
- Overall height
- 43.5 in (1105 mm)
- Overall width
- 21.5 in (546 mm)
- Overall depth
- 24.5 in (622 mm)
- Wetted material
- Carbon Steel, Stainless Steel, Chrome, Aluminum, Fluoroelastomer, PTFE, Nylon
- Includes
- Proportioner, Probler P2 Gun, Heated Hose
Standards & Compliance
- Material
- Carbon Steel, Stainless Steel, Chrome, Aluminum, Fluoroelastomer, PTFE, Nylon
- Temperature Range
- up to 190 °F (88 °C)
- HS Code
- 8424.20
Compatibility & Fitment
Reactor is Graco's plural-component spray-foam/polyurea proportioner line. mix ratio 1:1; supply 230, 400 V; this package includes: Proportioner, Probler P2 Gun, Heated Hose. Confirm voltage/phase, material type and hose/gun pairing suit the application before ordering.
