Graco Reactor 2 E-XP2 Proportioner Package, Heated Hose with Scuff Guard, 230/400 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco EH2012 Reactor 2 E-XP2 Proportioner Package, Heated Hose with Scuff Guard, 230/400 V, part number EH2012. Reactor 2 plural-component proportioner, 1:1 mix ratio. Maximum working pressure 3500 psi (241 bar). Maximum fluid temperature 190 °F. Wetted parts: Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Chemically Resistant O-Rings, PTFE, UHMWPE. Includes: Proportioner, Heated Hose with Xtreme-Wrap, Heated Whip Hose, Graco Insite, Fluid Inlet Sensors. All values read from the Graco product page (EH2012 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- Reactor 2
- Part number
- EH2012
- Type
- Proportioning Package
- Product type
- Plural Component
- Application
- Protective Coatings
- Material application
- Polyurea
- Compatible material
- Plural-Component
- Component type
- Two Component
- Pressure type
- High Pressure
- Applicator type
- Manual
- Power source
- Electric
- Maximum mix ratio
- 1:1
- Maximum working pressure
- 3500 psi (241 bar, 24.1 MPa)
- Maximum fluid temperature
- 190 °F (88 °C)
- Voltage
- 230, 400 V
- Amperage
- 35 @ 350 to 415 V ac (3-Phase WYE), 62 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase) A
- Frequency
- 50/60 Hz
- Phase
- 1, 3
- Power rating
- 15 kW
- Hose package
- Heated Hose
- Hose length
- 50, 10 ft (15, 3 m)
- Sound pressure level
- 73.6 dB(A)
- Overall height
- 63 in (1600 mm)
- Overall width
- 26.3 in (668 mm)
- Overall depth
- 15 in (381 mm)
- Wetted material
- Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Chemically Resistant O-Rings, PTFE, UHMWPE
- Includes
- Proportioner, Heated Hose with Xtreme-Wrap, Heated Whip Hose, Graco Insite, Fluid Inlet Sensors
Standards & Compliance
- Material
- Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Chemically Resistant O-Rings, PTFE, UHMWPE
- Pressure Rating
- 3500 psi (241 bar) max working
- Temperature Range
- up to 190 °F (88 °C)
- HS Code
- 8424.20
Compatibility & Fitment
Reactor is Graco's plural-component spray-foam/polyurea proportioner line. mix ratio 1:1; develops 3500 psi fluid pressure; supply 230, 400 V; this package includes: Proportioner, Heated Hose with Xtreme-Wrap, Heated Whip Hose, Graco Insite, Fluid Inlet Sensors. Confirm voltage/phase, material type and hose/gun pairing suit the application before ordering.
Product Documentation
More from Graco
Graco
Graco Reactor 2 E-30 Elite Proportioner Package, (5) Heated Hoses with Xtreme-Wrap, 10 kW, 230/400 V
EH2110
Graco
Graco Reactor 2 E-30 Proportioner Package, Heated Hose with Xtreme-Wrap, 15 kW, 230/400 V EH2011
Graco
Graco Reactor 2 E-XP2 Elite Proportioner Package, Heated Hose with Xtreme-Wrap, 230/400 V
EH2112
Graco
Graco Reactor 3 H-30 Elite Tier Spray Foam Proportioner, 60 Hz
27R357
Graco
Graco Reactor 3 H-XP3 Elite Tier Spray Foam Proportioner, 230V
27R387
Graco
Graco Reactor 3 H-50 Elite Tier Spray Foam Proportioner, 230V
27R377
Graco

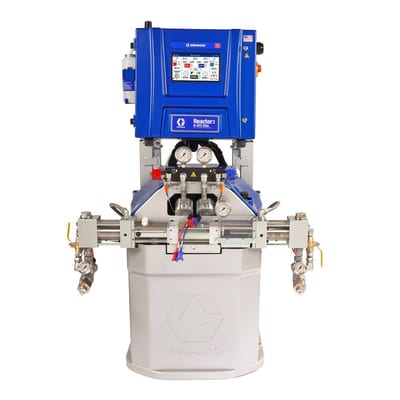

Graco Reactor 3 H-XP2 Elite Tier Polyurea Proportioner, 60 Hz
27R367
Graco

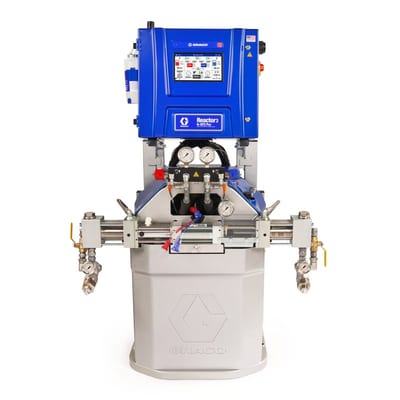

Graco Reactor 3 H-XP2 Pro Tier Polyurea Proportioner, 60 Hz
