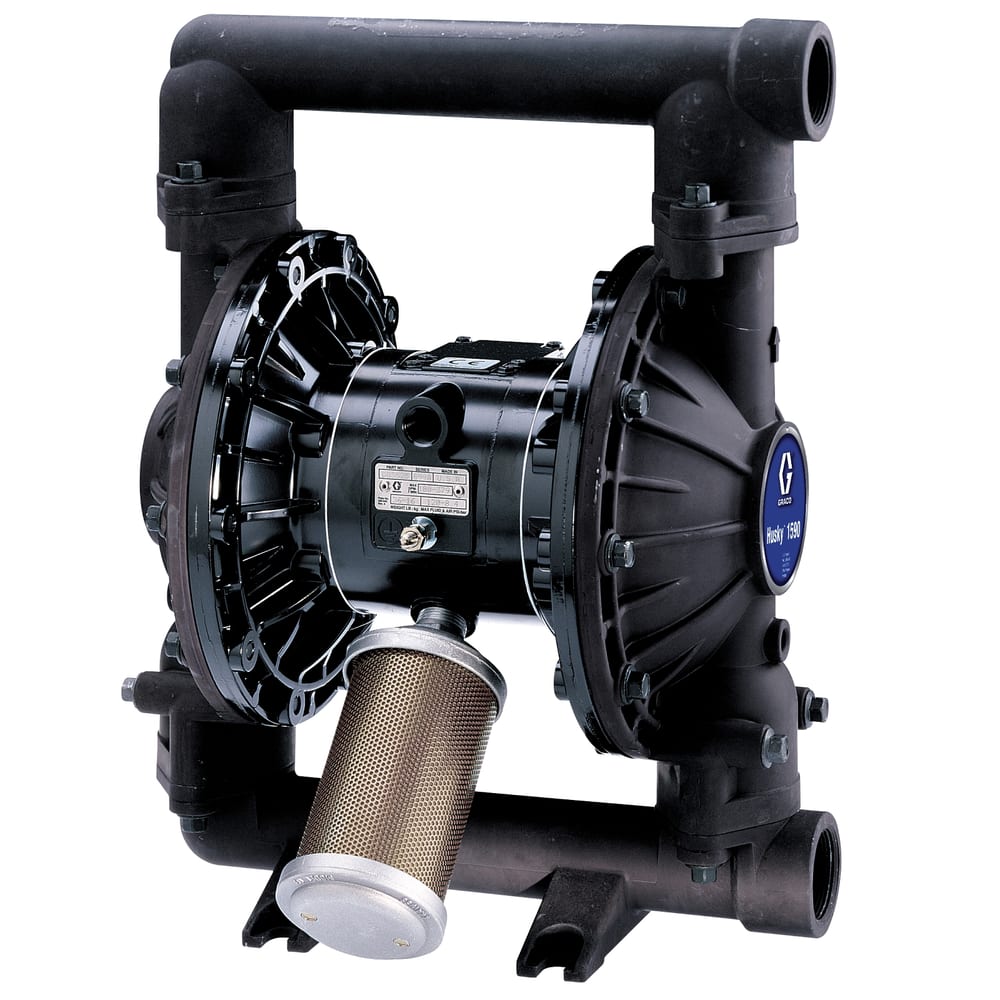

Graco DB3555 Husky 1590 air-operated double diaphragm pump, aluminium, 1-1/2 in. NPT, TPE (Hytrel) seats, TPE (Hytrel) balls, TPE (Hytrel) diaphragm
Graco · Pumps · Diaphragm
Graco Husky 1590 air-operated double diaphragm (AODD) metal pump, part number DB3555, aluminium fluid section and aluminium center section, with TPE (Hytrel) seats, TPE (Hytrel) balls, TPE (Hytrel) diaphragm. Fluid ports are 1-1/2 in. (38.1 mm) NPT(f). Maximum free-flow delivery 100 gpm (378.5 lpm) at up to 120 psi (8.4 bar) fluid pressure. The aluminium metal-body build of the Husky 1590 series.
Specifications
- Part number
- DB3555
- HS code
- 8413.81
- Material
- Aluminium (fluid section)
- Pressure rating
- 120 psi (8.4 bar, 0.84 MPa)
- Temperature range
- Maximum operating temperature 150 degF per the Graco product page
Compatibility
Husky 1590 series, 1-1/2 in. NPT metal (aluminium) AODD pump. Seat, ball and diaphragm materials are selected by configuration; confirm fluid compatibility before ordering.
