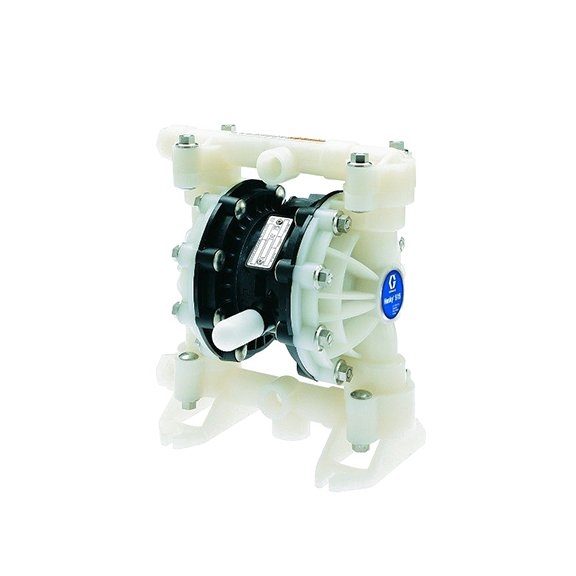

Graco Husky 515 air-operated double diaphragm pump, pvdf (kynar), 1/2 in. NPT, PVDF (Kynar) seats, FKM (Viton) balls, FKM (Viton) diaphragm
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco Husky 515 air-operated double diaphragm (AODD) pump, part number D55A88, pvdf (kynar) fluid section and polypropylene center section, with PVDF (Kynar) seats, FKM (Viton) balls and a FKM (Viton) diaphragm. Fluid ports are 1/2 in. (12.7 mm) NPT, center port. Maximum free-flow delivery 15 gpm (57 lpm) at up to 100 psi (7 bar) fluid pressure.
Technical Specifications
- Brand
- Graco
- Range
- Husky 515 (air-operated double diaphragm), 1/2 in.
- Part number
- D55A88
- Fluid section material
- pvdf (kynar)
- Center section material
- polypropylene
- Seat material
- PVDF (Kynar)
- Ball material
- FKM (Viton)
- Diaphragm material
- FKM (Viton)
- Manifold o-ring material
- PTFE
- Manifold configuration
- center port
- Maximum fluid working pressure
- 100 psi (7 bar)
- Maximum free-flow delivery
- 15 gpm (57 lpm)
- Maximum pump speed
- 400 cpm
- Maximum size pumpable solids
- 0.09375 in (2.4 mm)
- Maximum operating temperature (Graco product page)
- 225 degF (107 degC)
- Maximum air consumption
- 28 scfm
- Maximum air pressure
- 100 psi (7 bar)
- Air inlet size
- 1/4 npt(f)
- Fluid inlet and outlet size
- 1/2 in (12.7 mm) npt(f)
- Weight
- 8.5 lb
- Standards met
- ATEX, CE
Standards & Compliance
- Material
- PVDF (Kynar) (fluid section)
- Thread Standard
- NPT
- Pressure Rating
- 100 psi (7 bar)
- Temperature Range
- Maximum operating temperature 225 degF (107 degC) per the Graco product page
- HS Code
- 8413.81
Compatibility & Fitment
Husky 515 series, 1/2 in. plastic AODD pump. The next size up is the 3/4 in. Husky 716. Seat, ball and diaphragm materials are selected by configuration; confirm fluid compatibility before ordering.
