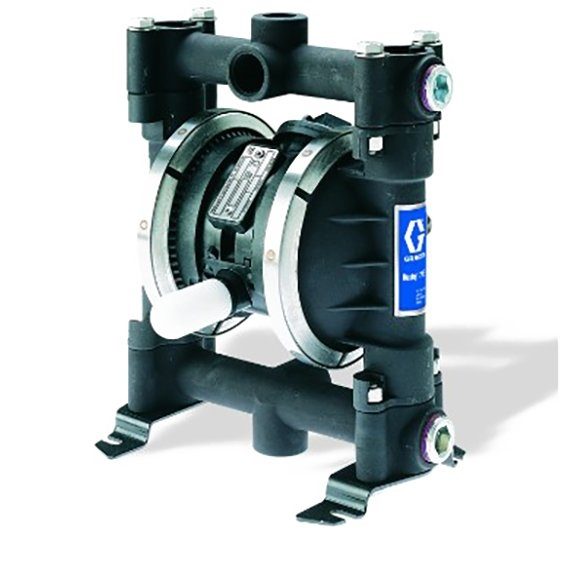

Graco D53338 Husky 716 air-operated double diaphragm pump, aluminum, 3/4 in. NPT, Stainless Steel seats, 316 Stainless Steel balls, Fluoroelastomer diaphragm
Graco · Pumps · Diaphragm
Graco Husky 716 air-operated double diaphragm (AODD) pump, part number D53338, aluminum fluid section and polypropylene center section, with Stainless Steel seats, 316 Stainless Steel balls and a Fluoroelastomer diaphragm. Fluid ports are 3/4 in. (19.05 mm) NPT, center port. Maximum free-flow delivery 16 gpm (60.6 lpm) at up to 100 psi (7 bar) fluid pressure.
Specifications
- Part number
- D53338
- HS code
- 8413.81
- Material
- Aluminum (fluid section)
- Pressure rating
- 100 psi (7 bar)
- Temperature range
- Maximum operating temperature 225 degF (107 degC) per the Graco product page
- Thread standard
- NPT
Compatibility
Husky 716 series, 3/4 in. air-operated double diaphragm pump. The next size down is the 1/2 in. Husky 515; the next size up is the 1 in. Husky 1050. Seat, ball and diaphragm materials are selected by configuration; confirm fluid compatibility before ordering.
Standards
Approvals
