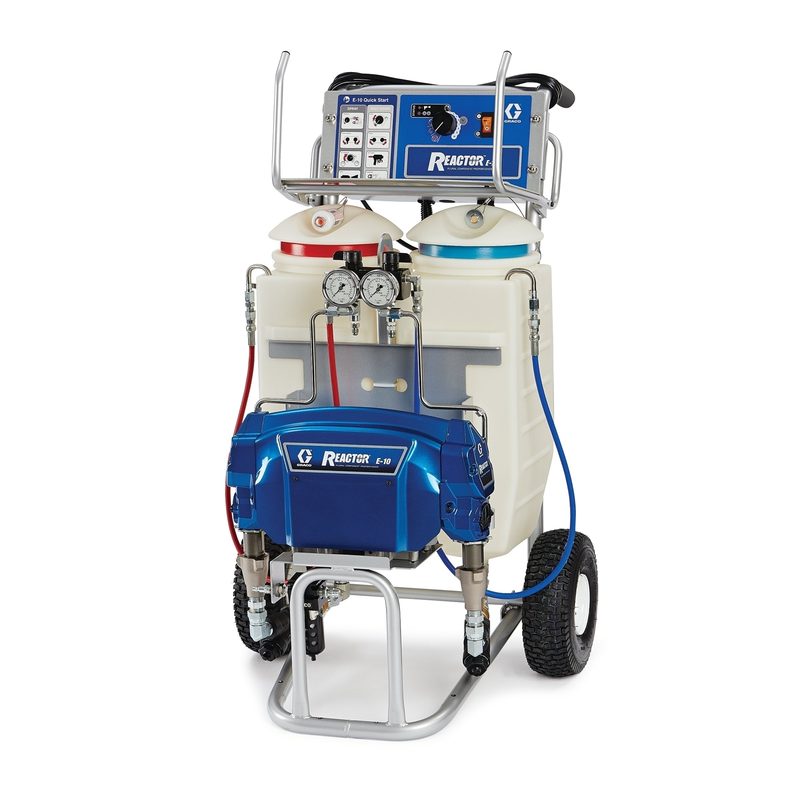

Graco Reactor E-10 Proportioner Package, Fusion CS Gun, 120 V, 1PH
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco CS9570 Reactor E-10 Proportioner Package, Fusion CS Gun, 120 V, 1PH, part number CS9570. Reactor E-10 plural-component proportioner, 1:1 mix ratio. Maximum working pressure 2000 psi (140 bar). Maximum flow rate 12 lb/min. Maximum fluid temperature 160 °F. Wetted parts: Aluminum, Brass, Carbide, Carbon Steel, Chrome, PTFE, Stainless Steel, UHMWPE. Includes: Proportioner, Fusion CS Gun, Unheated Hose. All values read from the Graco product page (CS9570 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- Reactor
- Series
- E-10
- Part number
- CS9570
- Type
- Proportioner Package
- Product type
- Plural Component
- Application
- Spray Foam
- Material application
- Polyurethane Foam
- Compatible material
- Plural-Component
- Component type
- Two Component
- Pressure type
- Low Pressure
- Applicator type
- Manual
- Power source
- Electric
- Maximum mix ratio
- 1:1
- Maximum working pressure
- 2000 psi (140 bar)
- Maximum flow rate
- 12 lb/min (5.44 kg/min)
- Maximum fluid temperature
- 160 °F (71 °C)
- Voltage
- 120 V
- Amperage
- 15 A
- Frequency
- 50/60 Hz
- Phase
- 1
- Power rating
- 3.5 kW (4.69 HP)
- Tank capacity
- 7 gal (26.5 L)
- Gun type
- Fusion CS
- Hose package
- Includes Hose
- Hose length
- 35 ft (10.7 m)
- Air inlet size
- 1/4 in Quick-Disconnect Pin
- Air outlet size
- 1/4 in NPSM
- Sound pressure level
- 84.5 dB(A)
- Overall height
- 44 in (1118 mm)
- Overall width
- 26.5 in (673 mm)
- Overall depth
- 30 in (762 mm)
- Wetted material
- Aluminum, Brass, Carbide, Carbon Steel, Chrome, PTFE, Stainless Steel, UHMWPE
- Includes
- Proportioner, Fusion CS Gun, Unheated Hose
Standards & Compliance
- Material
- Aluminum, Brass, Carbide, Carbon Steel, Chrome, PTFE, Stainless Steel, UHMWPE
- Pressure Rating
- 2000 psi (140 bar) max working
- Temperature Range
- up to 160 °F (71 °C)
- HS Code
- 8424.20
Compatibility & Fitment
Reactor is Graco's plural-component spray-foam/polyurea proportioner line. Series E-10; mix ratio 1:1; develops 2000 psi fluid pressure; supply 120 V; this package includes: Proportioner, Fusion CS Gun, Unheated Hose. Confirm voltage/phase, material type and hose/gun pairing suit the application before ordering.
