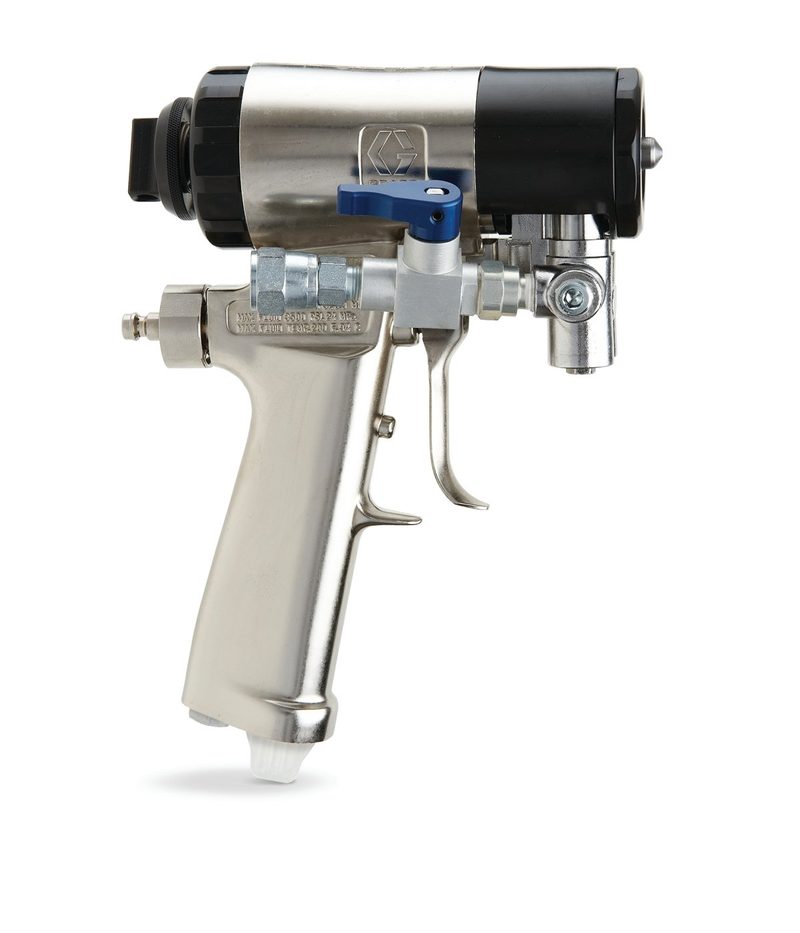

Graco Fusion CS Gun, Round Spray Pattern, 0.042 in (1.6 mm) Mix Chamber

Graco CS01RD Fusion CS Gun, Round Spray Pattern, 0.042 in (1.6 mm) Mix Chamber, part number CS01RD. Fusion CS Round plural-component impingement-mix spray gun, 0.042 in (1.07 mm) fluid orifice, Round spray pattern. Maximum fluid pressure 3500 psi (241 bar). Maximum fluid temperature 200 °F. Compatible material: Polyurethane, Polyurea, Spray Polyurethane Foam, No-Heat Foam. All values read from the Graco product page (CS01RD on graco.com).

Brand

Graco Model: Fusion CS Series: Round Part number: CS01RD Type: Spray Gun Gun type: Impingement Mix Air Purge Spray Gun Component type: Plural-Component Trigger type: Two-Finger Compatible material: Polyurethane, Polyurea, Spray Polyurethane Foam, No-Heat Foam Spray pattern: Round Pattern size: 11 Fluid orifice size: 0.042 in (1.07 mm) Mix chamber: 01 (.042) Impingement port size: 0.042 in (1.00 mm) Maximum fluid pressure: 3500 psi (241 bar) Maximum fluid working pressure: 3500 psi (245 bar) Maximum air inlet pressure: 130 psi (9 bar) minimum air inlet pressure: 80 psi (5.5 bar) Maximum fluid temperature: 200 °F (93 °C) Maximum flow rate @ pressure: 25 lb/min Air inlet size: 1/4 in NPT Component A inlet size: 1/2-20 in UNF Component B inlet size: 9/16-18 in UNF Sound pressure level: 75.27 dB(A) Sound power level: 73.45 dB(A) Gun weight: 2.6 lb (1.18 kg) Overall length: 7.5 in (191 mm) Overall height: 8.1 in (206 mm) Overall width: 3.3 in (84 mm) For use with: Non-Flammable Foam and Polyurea

Pressure Rating

3500 psi (241 bar) max fluid

Temperature Range

up to 200 °F (93 °C)

HS Code

8424.20
