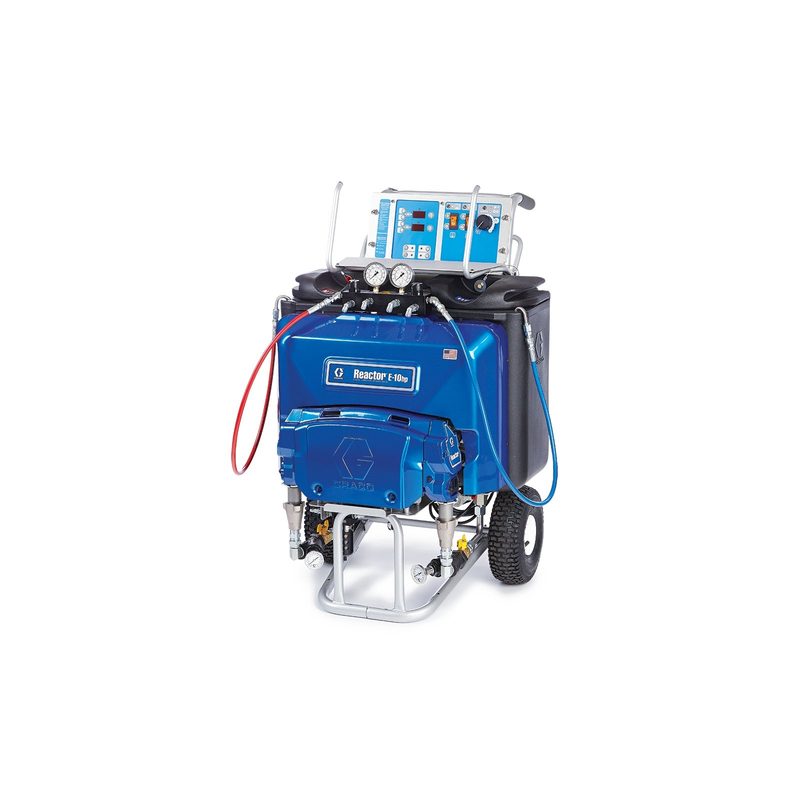

Graco Reactor E-10 HP Proportioner Package, Fusion AP Gun, 120 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco APT100 Reactor E-10 HP Proportioner Package, Fusion AP Gun, 120 V, part number APT100. Reactor E-10hp plural-component proportioner, 1:1 mix ratio. Maximum working pressure 3000 psi (207 bar). Maximum fluid temperature 170 °F. Wetted parts: Aluminum, Brass, Carbide, Carbon Steel, Chrome, PTFE, Stainless Steel, UHMWPE. Includes: Proportioner, Fusion AP Gun, Unheated Hose. All values read from the Graco product page (APT100 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- Reactor
- Series
- E-10hp
- Part number
- APT100
- Type
- Proportioning Package
- Product type
- Plural Component
- Application
- Protective Coatings
- Material application
- Polyurea
- Compatible material
- Plural Components
- Component type
- Two Component
- Pressure type
- Low Pressure
- Applicator type
- Manual
- Power source
- Electric
- Maximum mix ratio
- 1:1
- Maximum working pressure
- 3000 psi (207 bar, 21 MPa)
- Maximum fluid temperature
- 170 °F (77 °C)
- Voltage
- 120 V
- Amperage
- 20 A
- Frequency
- 50/60 Hz
- Tank capacity
- 6 gal (22.7 L)
- Gun type
- Fusion AP
- Hose length
- 35 ft (10.7 m)
- Air inlet size
- 1/4 in
- Air outlet size
- 1/4 in NPSM
- Sound pressure level
- 85.6 dB(A)
- Overall height
- 46 in (1168 mm)
- Overall width
- 29 in (737 mm)
- Overall depth
- 36 in (914 mm)
- Wetted material
- Aluminum, Brass, Carbide, Carbon Steel, Chrome, PTFE, Stainless Steel, UHMWPE
- Includes
- Proportioner, Fusion AP Gun, Unheated Hose
Standards & Compliance
- Material
- Aluminum, Brass, Carbide, Carbon Steel, Chrome, PTFE, Stainless Steel, UHMWPE
- Pressure Rating
- 3000 psi (207 bar) max working
- Temperature Range
- up to 170 °F (77 °C)
- HS Code
- 8424.20
Compatibility & Fitment
Reactor is Graco's plural-component spray-foam/polyurea proportioner line. Series E-10hp; mix ratio 1:1; develops 3000 psi fluid pressure; supply 120 V; this package includes: Proportioner, Fusion AP Gun, Unheated Hose. Confirm voltage/phase, material type and hose/gun pairing suit the application before ordering.
