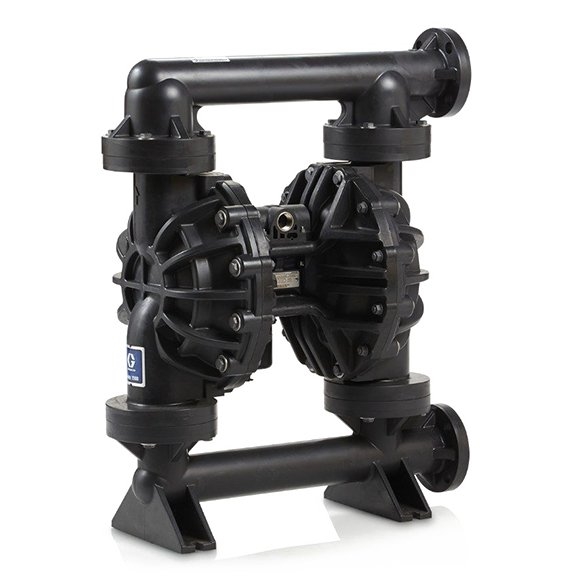

Graco Husky 2200 air-operated double diaphragm pump, PVDF (Kynar), 2 in. end flange, PVDF (Kynar) seats, PTFE balls, PTFE/EPDM 2-Piece diaphragm

Graco Husky 2200 air-operated double diaphragm (AODD) pump, part number 653546, PVDF (Kynar) fluid section and polypropylene center section, end flange configuration, PVDF (Kynar) seats, PTFE balls and a PTFE/EPDM 2-piece diaphragm. Fluid ports are 2 in (51 mm). Maximum free-flow delivery 200 gpm (757 lpm) at up to 125 psi (8.6 bar) fluid pressure, 125 cpm, maximum size pumpable solids 0.375 in, maximum operating temperature 180 degF (82 degC), weight 106 lb. The 200 gpm Husky 2200 size.

Brand

Graco Range: Husky 2200 (air-operated double diaphragm) Part number: 653546 Fluid section material: PVDF (Kynar) Center section material: polypropylene Seat material: PVDF (Kynar) Ball material: PTFE Diaphragm material: PTFE/EPDM 2-piece Manifold configuration: End Port (end flange) Manifold O-ring material: PTFE Maximum fluid working pressure: 125 psi (8.6 bar, 0.86 MPa) Maximum free-flow delivery: 200 gpm (757 lpm) Maximum pump speed: 125 cpm Maximum size pumpable solids: 0.375 in (Graco product page) Maximum air consumption: 140 scfm Maximum air pressure: 125 psi (8.6 bar) Air pressure operating range: 20 to 125 psi (1.4 to 8.6 bar) Maximum operating temperature: 180 degF (82 degC) minimum operating temperature: 32 degF (0 degC) Air inlet size: 3/4 npt(f) Air exhaust port size: 1 in npt(f) Fluid inlet and outlet size: 2 in (51 mm) Weight: 106 lb Standards met: CE

Material

PVDF (Kynar) (fluid section)

Pressure Rating

125 psi (8.6 bar, 0.86 MPa)

Temperature Range

Operating temperature 32 to 180 degF (0 to 82 degC)

HS Code

8413.81
