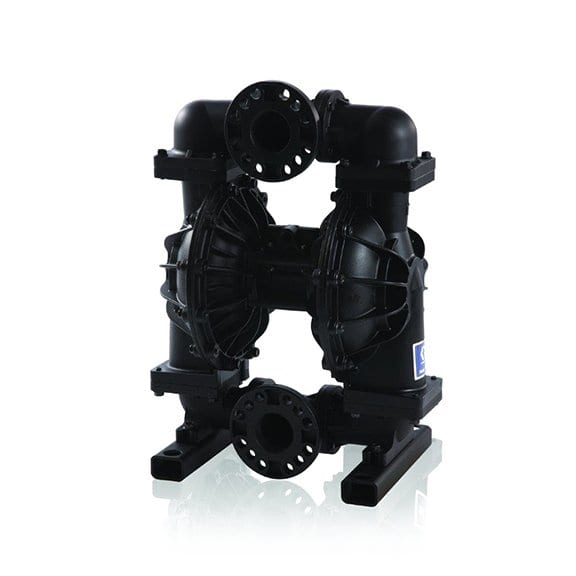

Graco 652134 Husky 3300 air-operated double diaphragm pump, aluminium, 3 in. ANSI/DIN/BSPT flanged, G.E.T. seats, G.E.T. balls, G.E.T. diaphragm
Graco · Pumps · Diaphragm
Graco Husky 3300 air-operated double diaphragm (AODD) pump, part number 652134, aluminium fluid section and aluminium center section in the ANSI/DIN/BSPT flanged port configuration, with G.E.T. seats, G.E.T. balls and a G.E.T. diaphragm. Fluid ports are 3 in (76.2 mm) BSPT flange. Maximum free-flow delivery 300 gpm (1136 lpm) at up to 125 psi (8.6 bar) fluid pressure, 103 cpm, maximum size pumpable solids 0.5 in (12.7 mm), weight 150 lb (68 kg). ATEX and CE.
Specifications
- Part number
- 652134
- HS code
- 8413.81
- Material
- Aluminium (fluid section)
- Pressure rating
- 125 psi (8.6 bar)
- Temperature range
- Minimum operating temperature 32 degF (0 degC); maximum operating temperature not published on the Graco product page
Compatibility
Husky 3300 series, 3 in. aluminium AODD pump (300 gpm), ANSI/DIN/BSPT flanged port configuration. Seat, ball and diaphragm materials are selected by configuration; confirm fluid compatibility before ordering.
Standards
Approvals
