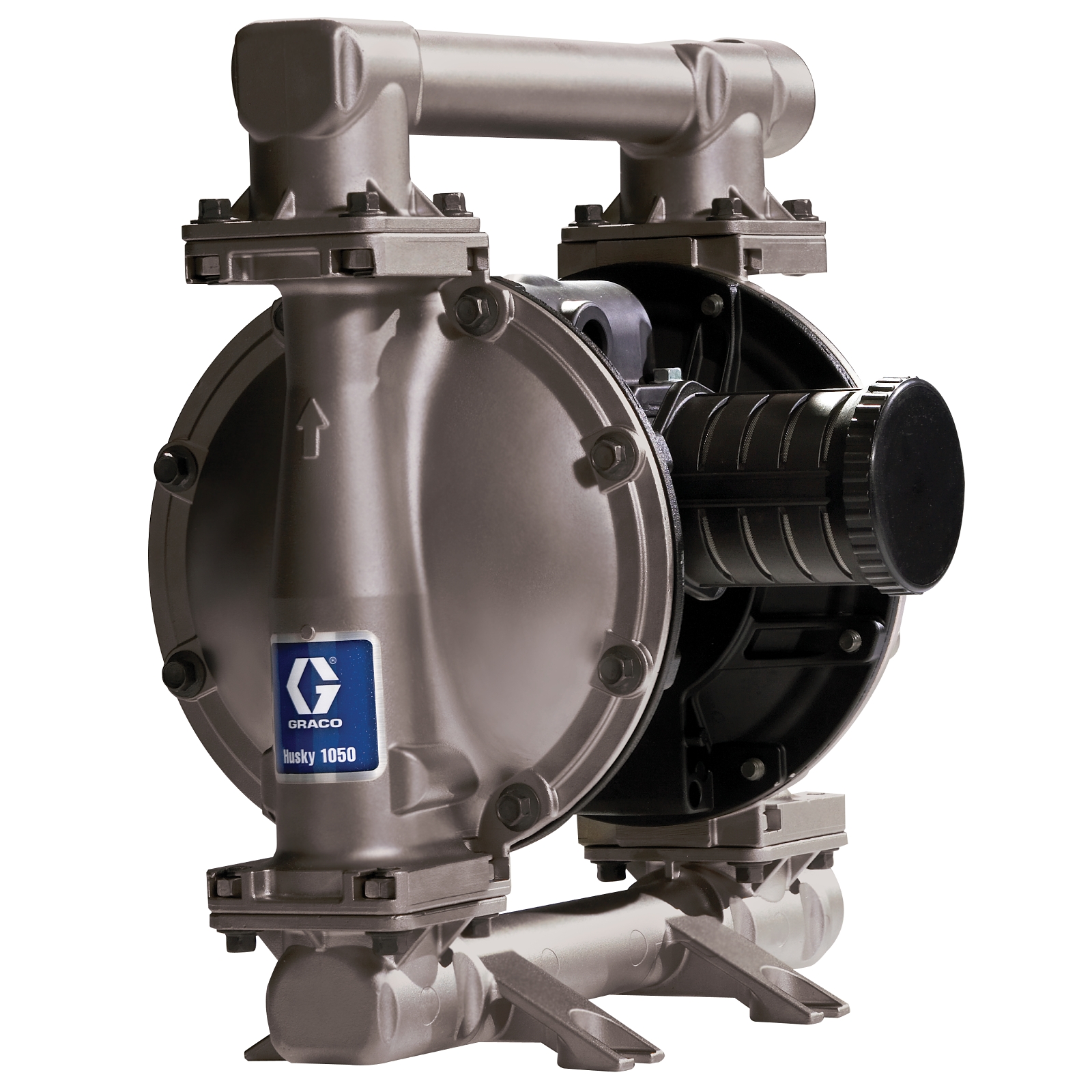

Graco 651000 Husky 1050 air-operated double diaphragm pump, stainless steel, 1 in. NPT, Stainless Steel seats, 316 Stainless Steel balls, PTFE/EPDM 2-Piece diaphragm
Graco · Pumps · Diaphragm
Graco Husky 1050 air-operated double diaphragm (AODD) pump, part number 651000, stainless steel fluid section with an aluminum center section, Stainless Steel seats, 316 Stainless Steel balls and a PTFE/EPDM 2-Piece diaphragm. 1 in. NPT (25.4 mm) fluid inlet and outlet, 1/2 in. NPT(f) air inlet, 3/4 in. NPT(f) air exhaust. Maximum free-flow delivery 50 gpm (189 lpm), 280 cpm, maximum size pumpable solids 0.125 in (3.175 mm), weight 41.4 lb. Maximum operating temperature 220 °F (104 °C).
Specifications
- Part number
- 651000
- HS code
- 8413.81
- Material
- Stainless Steel (fluid section)
- Pressure rating
- 125 psi (8.6 bar)
- Temperature range
- Up to 220 °F (104 °C)
Compatibility
Husky 1050 series, 1 in. NPT stainless-steel pump. Seat, ball and diaphragm materials are selected by configuration; confirm fluid compatibility before ordering.
Standards
Approvals
