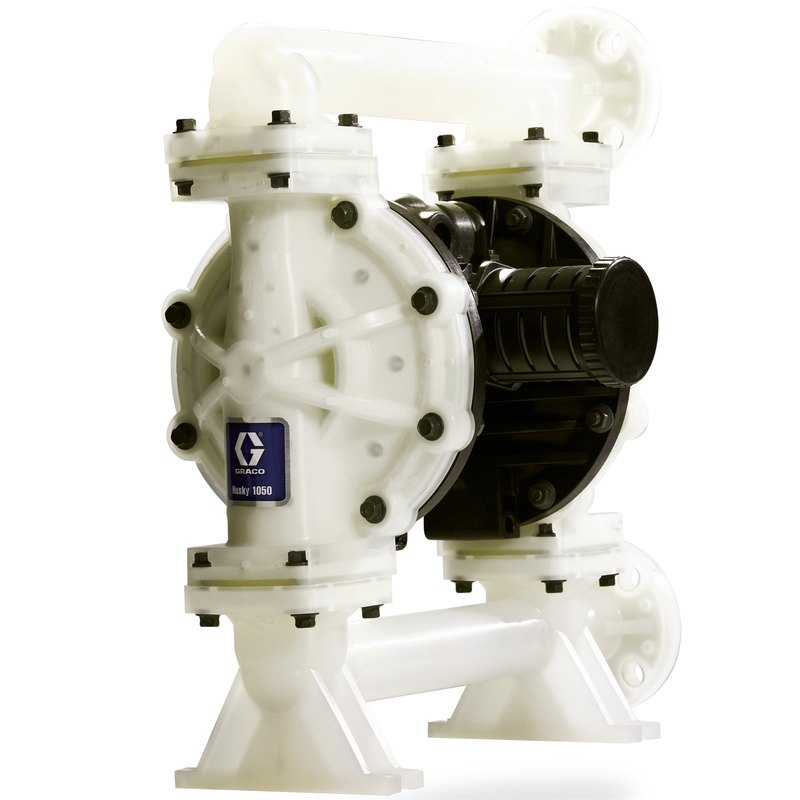

Graco 649572 Husky 1050 air-operated double diaphragm pump, polypropylene fluid section, 1 in., Polypropylene seats, PTFE balls, Santoprene diaphragm
Graco · Pumps · Diaphragm
Graco Husky 1050 air-operated double diaphragm (AODD) pump, part number 649572. Polypropylene fluid section with a 1 in. fluid connection and polypropylene center section, configured with Polypropylene seats, PTFE balls, Santoprene diaphragm. Stall-free, low-pulsation air valve for a smooth, rapid changeover; one-piece center section. Maximum flow 50 gpm (189 l/min) at up to 125 psi (8.6 bar) fluid pressure.
Specifications
- Part number
- 649572
- HS code
- 8413.81
- Material
- Polypropylene (fluid section)
- Pressure rating
- 125 psi (8.6 bar)
- Temperature range
- Up to 150 °F (66 °C)
Compatibility
Husky 1050 series, 1 in. AODD pump. Diaphragm, ball and seat elastomers are selected by the configuration; confirm fluid compatibility before ordering.
Approvals
