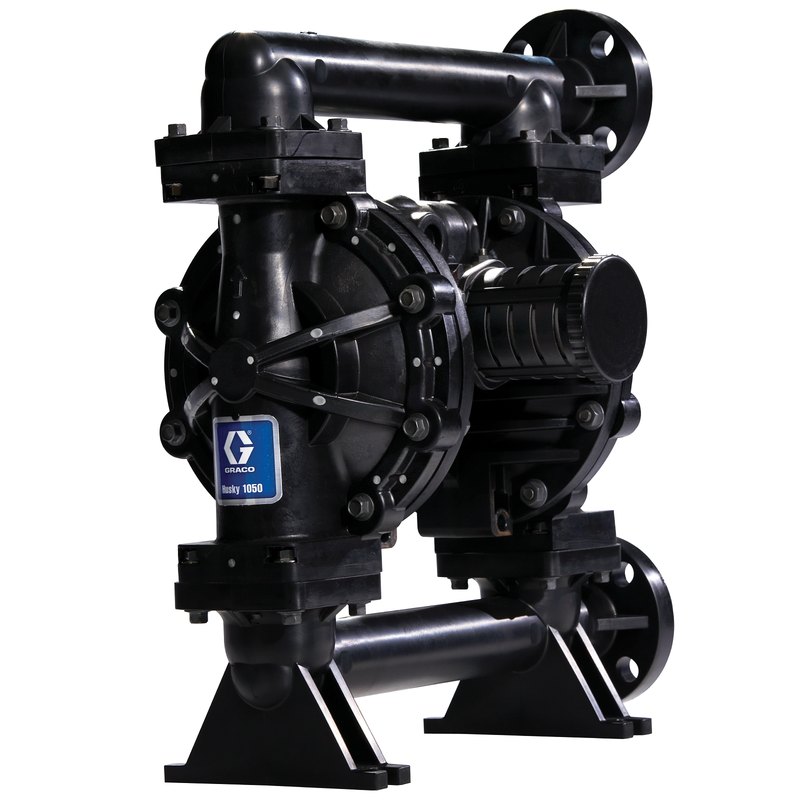

Graco Husky 1050 air-operated double diaphragm pump, pvdf (kynar) fluid section, 1 in., Stainless Steel seats, 316 Stainless Steel balls, PTFE/EPDM 2-Piece diaphragm
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco Husky 1050 air-operated double diaphragm (AODD) pump, part number 649376. PVDF (Kynar) fluid section with a 1 in. fluid connection and polypropylene center section, configured with Stainless Steel seats, 316 Stainless Steel balls, PTFE/EPDM 2-Piece diaphragm. Stall-free, low-pulsation air valve for a smooth, rapid changeover; one-piece center section. Maximum flow 50 gpm (189 l/min) at up to 125 psi (8.6 bar) fluid pressure.
Technical Specifications
- Brand
- Graco
- Range
- Husky 1050 (air-operated double diaphragm)
- Part number
- 649376
- Model
- Husky
- Type
- Pneumatic Diaphragm Pump
- Fluid section material
- PVDF (Kynar)
- Center section material
- Polypropylene
- Seat material
- Stainless Steel
- Ball material
- 316 Stainless Steel
- Diaphragm material
- PTFE/EPDM 2-Piece
- Manifold O-ring material
- PTFE
- Manifold configuration
- Center Port
- Maximum fluid working pressure
- 125 psi (8.6 bar)
- Maximum flow rate
- 50 gpm (189 l/min)
- Maximum cycle rate
- 280 cpm
- Maximum air consumption
- 67 scfm
- Maximum air inlet pressure
- 125 psi (8.6 bar)
- Maximum solid size
- 0.125 in (3.175 mm)
- Fluid inlet/outlet size
- 1 in (25.4 mm)
- Air inlet size
- 1/2 in NPT(f)
- Air exhaust port size
- 3/4 in NPT
- Weight
- 26 lb
- Standards met (per Graco)
- CE
Standards & Compliance
- Material
- PVDF (Kynar) (fluid section)
- Pressure Rating
- 125 psi (8.6 bar)
- HS Code
- 8413.81
Compatibility & Fitment
Husky 1050 series, 1 in. AODD pump. Diaphragm, ball and seat elastomers are selected by the configuration; confirm fluid compatibility before ordering.
