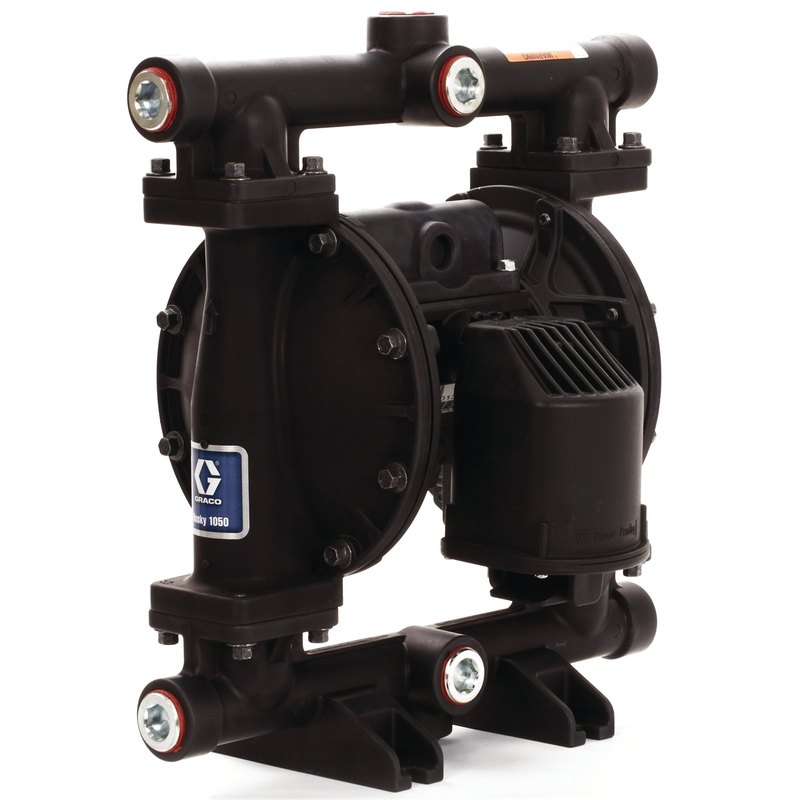

Graco 647671 Husky 1050 air-operated double diaphragm pump, aluminum fluid section, 1 in., Buna-N seats, Buna-N balls, Buna-N diaphragm
Graco · Pumps · Diaphragm
Graco Husky 1050 air-operated double diaphragm (AODD) pump, part number 647671. Aluminum fluid section with a 1 in. fluid connection and aluminum center section, configured with Buna-N seats, Buna-N balls, Buna-N diaphragm. Stall-free, low-pulsation air valve for a smooth, rapid changeover; one-piece center section. Maximum flow 50 gpm (189 l/min) at up to 125 psi (8.6 bar) fluid pressure.
Specifications
- Part number
- 647671
- HS code
- 8413.81
- Material
- Aluminum (fluid section)
- Pressure rating
- 125 psi (8.6 bar)
- Temperature range
- Up to 180 °F (82 °C)
Compatibility
Husky 1050 series, 1 in. AODD pump. Diaphragm, ball and seat elastomers are selected by the configuration; confirm fluid compatibility before ordering.
Approvals
