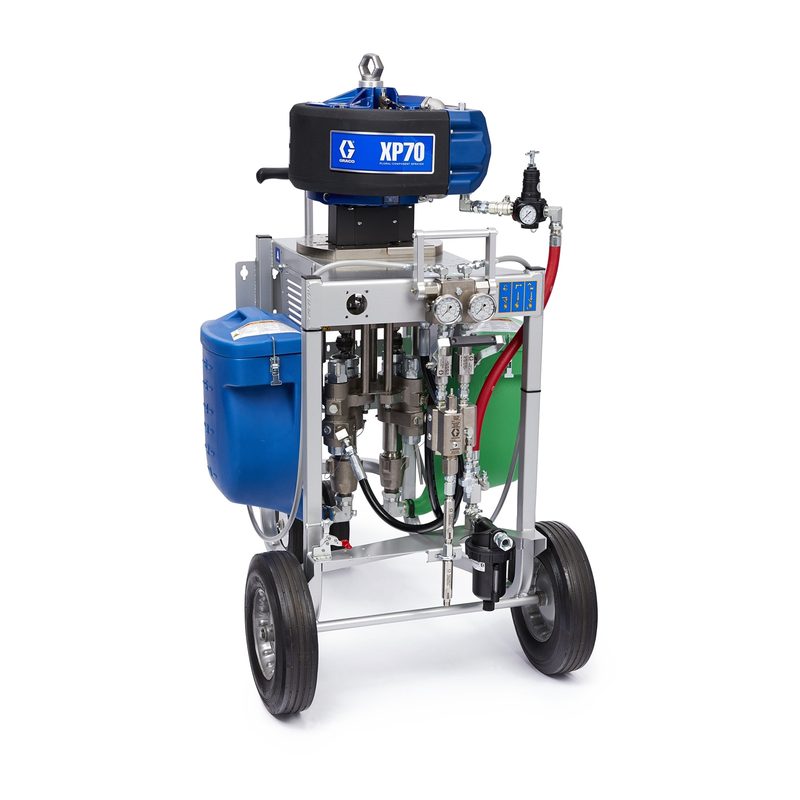

Graco XP70 Cart System, Hazardous Location, 3:1 Bare, 240V

Graco 571302 XP70 Cart System, Hazardous Location, 3:1 Bare, 240V, part number 571302. Graco XP70 Cart System plural component sprayer. Air power source. 6800 psi maximum working pressure. All values read from the Graco product page (571302 on graco.com).

Brand

Graco Family: XP70 Cart System Part number: 571302 Air Inlet Size (in): 3/4 Air Inlet Thread Gender: Female Air Inlet Thread Type: NPSM Applicator Type: Automatic Airless, Manual Airless Compatible material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents Component Type: Plural-Component Configuration: Bare Fluid Inlet Size (in): 1-1/4 Fluid Inlet Thread Gender: Male Fluid Inlet Thread Type: NPSM Fluid Outlet Size (in): 1/2 Fluid Outlet Thread Gender: Female Fluid Outlet Thread Type: NPT Flush Type: Solvent Hose Length (ft): 35 Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer Location Category: Hazardous Location material Application: Coatings, Paints, Primers Maximum Air Consumption (SCFM): 75 scfm/gpm at 100 psi Maximum Air Inlet Pressure (psi): 175 Maximum Cycle Rate (CPM): 40 Maximum Flow Rate (GPM): 2 Maximum Flow Rate (cc/min): 7570 Maximum Fluid Temperature (°F): 160 Maximum Fluid Viscosity (cP): 20000 Maximum Hose Length (ft): 300 Maximum Operating Temperature (°F): 130 Maximum Spray Pressure (MPa): 50 Maximum Spray Pressure (psi): 7250 Maximum Working Pressure (MPa): 47 Maximum Working Pressure (psi): 6800 Measuring Type: Fixed Mechanical Positive Displacement minimum Fluid Viscosity (cP): 200 Mix Accuracy (%): +/- 5 Mix Ratio: 3:1 Number of Catalysts: 1 Number of Reducers: 0 Number of Resin Colors: 1 Number of Tanks: 2 Overall Depth (in): 52 Overall Height (in): 62 Overall Width (in): 35 Power Source: Air Product Type: Plural Component Sound Power Level (dB(A)): 98 Sound Pressure Level (dB(A)): 86 Type: Plural Component Sprayer Voltage (V): 240 Weight (lb): 425 Wetted material: Carbon Steel with Electroless Nickel Plating, Plated Carbon Steel, Stainless Steel, Carbide, Acetal, UHMWPE, Nylon, PTFE Solvent Resistant Plastics, Carbon Filled PTFE, Aluminum Hose Length (m): 10.7 Maximum Air Inlet Pressure (bar): 12.07 Maximum Air Inlet Pressure (kPa): 1207 Maximum Flow Rate (L/min): 7.57 Maximum Fluid Temperature (°C): 71 Maximum Hose Length (m): 91.4 Maximum Operating Temperature (°C): 54 Maximum Spray Pressure (bar): 500 Maximum Spray Pressure (kPa): 50000 Maximum Working Pressure (bar): 469 Maximum Working Pressure (kPa): 46900 Overall Depth (cm): 132.1 Overall Depth (mm): 1321 Overall Height (cm): 157.5 Overall Height (mm): 1575 Overall Width (cm): 88.9 Overall Width (mm): 889 Weight (kg): 193

Material

Carbon Steel with Electroless Nickel Plating, Plated Carbon Steel, Stainless Steel, Carbide, Acetal, UHMWPE, Nylon, PTFE Solvent Resistant Plastics, Carbon Filled PTFE, Aluminum

Pressure Rating

6800 psi max

Temperature Range

up to 130 °F

HS Code

8424.20
